Sage::CParticleEngine3D Class Reference

The 3D particle engine. More...

#include <SageParticleEngine.h>

Inheritance diagram for Sage::CParticleEngine3D:

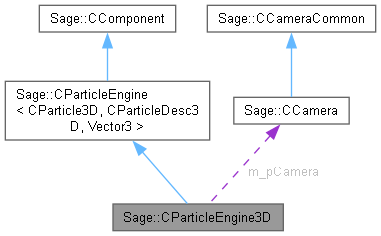

Collaboration diagram for Sage::CParticleEngine3D:

Public Member Functions
	CParticleEngine3D (Sage::CCamera *=nullptr)
	Constructor.
void	GetRenderList (std::vector< CSpriteDesc3D > &)
	Get render list.
Public Member Functions inherited from Sage::CParticleEngine< CParticle3D, CParticleDesc3D, Vector3 >
	CParticleEngine ()
	Constructor.
virtual	~CParticleEngine ()
	Destructor.
void	Create (const CParticleDesc3D &d)
	Create particle.
void	Step ()
	Animation step.
void	Clear (float=0.1f)
	Fade out all particles.
void	Clear (UINT)
	Clear out a particular kind of particle.
void	Translate (const Vector3 &)
	Translate all particles.
void	TranslateTo (const Vector3 &)
	Translate all particles to a point.
void	SetOrigin (const Vector3 &)
	Set origin.

Private Attributes
Sage::CCamera *	m_pCamera = nullptr
	Pointer to a camera.

Additional Inherited Members
Protected Member Functions inherited from Sage::CParticleEngine< CParticle3D, CParticleDesc3D, Vector3 >
void	Move ()
	Move all particles.
const float	GetLifeFraction (const CParticle3D *) const
	Get life fraction.
void	Cull ()
	Cull old dead particles.
void	Rescale ()
	Compute new particle scales.
void	Fade ()
	Compute new particle alpha channel.
Protected Attributes inherited from Sage::CParticleEngine< CParticle3D, CParticleDesc3D, Vector3 >
std::list< CParticle3D * >	m_stdList
	Particle list.
Vector3	m_vOrigin
	Origin in world space.
Static Protected Attributes inherited from Sage::CComponent
static std::unique_ptr< CTimer >	m_pTimer = std::make_unique<CTimer>()
	Pointer to a timer.
static std::unique_ptr< CRandom >	m_pRandom = std::make_unique<CRandom>()
	Pointer to a PRNG.
static std::unique_ptr< CSound >	m_pSound = std::make_unique<CSound>()
	Pointer to sound manager.
static std::unique_ptr< CKeyboard >	m_pKeyboard
	Pointer to a keyboard handler.
static std::unique_ptr< CMouse >	m_pMouse = std::make_unique<CMouse>()
	Pointer to a mouse handler.
static std::unique_ptr< CController >	m_pController
	Pointer to a controller.

Detailed Description

The 3D particle engine can deliver a vector of 3D sprite descriptors that need to be rendered.

Constructor & Destructor Documentation

CParticleEngine3D()

CParticleEngine3D::CParticleEngine3D

(

Sage::CCamera *

pCamera = nullptr

)

Parameters

pCamera

Pointer to the camera, defaults to null.

Member Function Documentation

GetRenderList()

void CParticleEngine3D::GetRenderList

(

std::vector< CSpriteDesc3D > &

renderlist

)

Append the sprite descriptors of all particles to the end of a render list. If a pointer to the camera was provided in the constructor, then the sprite descriptors are first rotated to face the camera.

Parameters

renderlist

A vector of 3D sprite descriptors.

Here is the call graph for this function:
