Sage::CMouse Class Reference

The mouse handler. More...

#include <SageMouse.h>

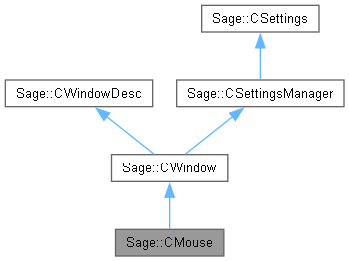

Inheritance diagram for Sage::CMouse:

Collaboration diagram for Sage::CMouse:

Public Member Functions
void	GetState ()
	Poll the mouse state.
const Vector2	GetMove () const
	Get amount of motion.
const Vector2	GetPos () const
	Get position.
Public Member Functions inherited from Sage::CWindow
template<typename t0 , typename t1 , typename t2 >
int	WinMain (_In_ HINSTANCE, bool, const t0 &, const t1 &, const t2 &)
	WinMain.
Public Member Functions inherited from Sage::CSettingsManager
void	Load ()
	Load game settings.

Protected Attributes
Vector2	m_vCurPos
	Current position.
Vector2	m_vOldPos
	Previous position.

Additional Inherited Members
Protected Member Functions inherited from Sage::CWindow
HWND	CreateGameWindow (HINSTANCE)
	Create default window.
bool	InitGameWindow (_In_ HINSTANCE)
	Initialize the game window.
void	OpenDebugConsole ()
	Open debug console window.
void	CloseDebugConsole ()
	Close debug console window.
Protected Member Functions inherited from Sage::CSettingsManager
void	SetWinSize (int, int)
	Set window size information.
Static Protected Member Functions inherited from Sage::CWindow
static LRESULT CALLBACK	WndProc (HWND, UINT, WPARAM, LPARAM)
	The Window Procedure.
static void	GetBorderSizes (int &w, int &h)
	Get window border width and height.
static void	EnforceAspectRatio (WPARAM, RECT *)
	Enforce aspect ratio.
static void	EnforceAspectRatio (MINMAXINFO *)
	Enforce aspect ratio.
Static Protected Attributes inherited from Sage::CWindow
static Vector2	m_vMousePos
	Mouse position.
Static Protected Attributes inherited from Sage::CWindowDesc
static HWND	m_Hwnd = 0
	Window handle.
static HINSTANCE	m_hInst = 0
	Instance handle.
static bool	m_bExitSizeMove = true
	User just finished moving/resizing window.
Static Protected Attributes inherited from Sage::CSettingsManager
static tinyxml2::XMLElement *	m_pXmlSettings = nullptr
	Pointer to the settings tag in the XML settings file.
static float	m_fAspectRatio = 1.0f
	Aspect ratio, width/ht.
Static Protected Attributes inherited from Sage::CSettings
static char	m_szName [MAX_PATH]
	Name of this game.
static int	m_nWinWidth = 0
	Window width in pixels.
static int	m_nWinHeight = 0
	Window height in pixels.
static Vector2	m_vWinCenter = Vector2::Zero
	Window center.

Detailed Description

This is a polled mouse handler. Its GetState() function must be called once per frame. The mouse position from the previous frame is retained so that queries can determine how far the mouse moved in the last frame. Mouse button clicks are handled by the keyboard handler using virtual key codes VK_LBUTTON, VK_MBUTTON, VK_RBUTTON, VK_XBUTTON1, and VK_XBUTTON2.

Member Function Documentation

GetMove()

const Vector2 CMouse::GetMove

(

)

const

Get the displacement vector for the mouse since the last time GetState() was called.

Returns

Vector displacement of mouse.

GetPos()

const Vector2 CMouse::GetPos

(

)

const

Get the position the mouse in screen coordinates the last time GetState() was called. The Origin is at bottom left of the window, positive x goes to the right, and positive y goes upwards.

Returns

Position of mouse.

GetState()

void CMouse::GetState

(

)

Get the current mouse state. This function should be called once per frame.
