Sage::CWindow Class Reference

The window class. More...

#include <SageWindow.h>

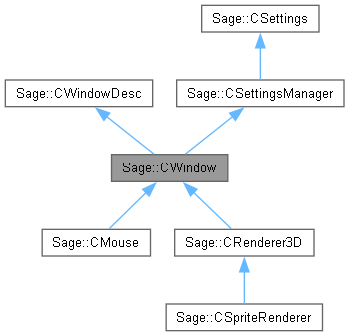

Inheritance diagram for Sage::CWindow:

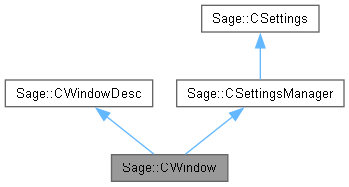

Collaboration diagram for Sage::CWindow:

Public Member Functions
template<typename t0 , typename t1 , typename t2 >
int	WinMain (_In_ HINSTANCE, bool, const t0 &, const t1 &, const t2 &)
	WinMain.
Public Member Functions inherited from Sage::CSettingsManager
void	Load ()
	Load game settings.

Protected Member Functions
HWND	CreateGameWindow (HINSTANCE)
	Create default window.
bool	InitGameWindow (_In_ HINSTANCE)
	Initialize the game window.
void	OpenDebugConsole ()
	Open debug console window.
void	CloseDebugConsole ()
	Close debug console window.
Protected Member Functions inherited from Sage::CSettingsManager
void	SetWinSize (int, int)
	Set window size information.

Static Protected Member Functions
static LRESULT CALLBACK	WndProc (HWND, UINT, WPARAM, LPARAM)
	The Window Procedure.
static void	GetBorderSizes (int &w, int &h)
	Get window border width and height.
static void	EnforceAspectRatio (WPARAM, RECT *)
	Enforce aspect ratio.
static void	EnforceAspectRatio (MINMAXINFO *)
	Enforce aspect ratio.

Static Protected Attributes
static Vector2	m_vMousePos
	Mouse position.
Static Protected Attributes inherited from Sage::CWindowDesc
static HWND	m_Hwnd = 0
	Window handle.
static HINSTANCE	m_hInst = 0
	Instance handle.
static bool	m_bExitSizeMove = true
	User just finished moving/resizing window.
Static Protected Attributes inherited from Sage::CSettingsManager
static tinyxml2::XMLElement *	m_pXmlSettings = nullptr
	Pointer to the settings tag in the XML settings file.
static float	m_fAspectRatio = 1.0f
	Aspect ratio, width/ht.
Static Protected Attributes inherited from Sage::CSettings
static char	m_szName [MAX_PATH]
	Name of this game.
static int	m_nWinWidth = 0
	Window width in pixels.
static int	m_nWinHeight = 0
	Window height in pixels.
static Vector2	m_vWinCenter = Vector2::Zero
	Window center.

Detailed Description

CWindow handles Windows specific things. This will help you to keep the rest of your code as OS-independent as possible. Gnarly things that it handles includes making a window whose client area is a specific width and height, and making sure that the window maintains its aspect ratio if the user is brave enough to resize it by dragging on one of the window's edges or corners.

Member Function Documentation

CloseDebugConsole()

void CWindow::CloseDebugConsole ( )

protected

Delay closing the console window so that the user can read any debug messages that might have occurred while closing the game. This function should be one of the last functions called before exiting.

Here is the caller graph for this function:

CreateGameWindow()

HWND CWindow::CreateGameWindow ( HINSTANCE h )

protected

Register and create a window. Care is taken to ensure that the client area of the window is the right size, because the default way of creating a window has you specify the width and height including the frame.

Parameters

h	instance handle.

Returns

Window handle.

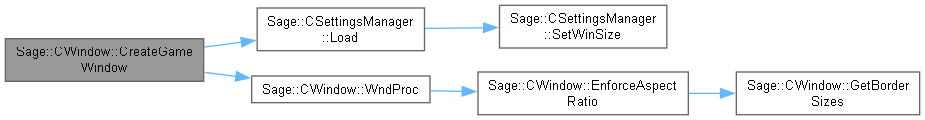

Here is the call graph for this function:

Here is the caller graph for this function:

EnforceAspectRatio() [1/2]

void CWindow::EnforceAspectRatio ( MINMAXINFO * pmmi )

staticprotected

Enforce the aspect ratio in response to a WM_GETMINMAXINFO message. This function ensures that when the window is bigger than the screen, then it has the correct aspect ratio when Windows automatically resizes it.

Parameters

pmmi	[OUT] Pointer to a MINMAXINFO structure.

Here is the call graph for this function:

EnforceAspectRatio() [2/2]

void CWindow::EnforceAspectRatio ( WPARAM wParam, RECT * pRect )

staticprotected

Force the aspect ratio of the client area of the window in response to a WM_SIZING message. This function resizes the drag rectangle provided by the WM_SIZING message.

Parameters

wParam	WMSZ message telling us which edge is being dragged on.
pRect	[IN, OUT] Pointer to drag rectangle.

Here is the call graph for this function:

Here is the caller graph for this function:

GetBorderSizes()

void CWindow::GetBorderSizes ( int & w, int & h )

staticprotected

Get the combined width and height of the borders on the window. Combined width is the sum of the widths of the left and right borders. Combined height is the sum of the heights of the top and bottom borders.

Parameters

w	[OUT] Combined border width.
h	[OUT] Combined border height.

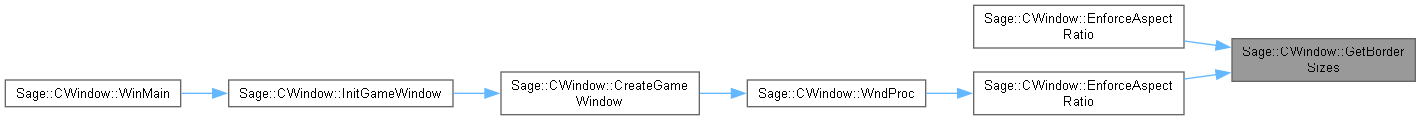

Here is the caller graph for this function:

InitGameWindow()

bool CWindow::InitGameWindow ( _In_ HINSTANCE hInstance )

protected

Create and initialize the game window.

Parameters

hInstance

Handle to the current instance of this application.

Returns

true if application terminates correctly.

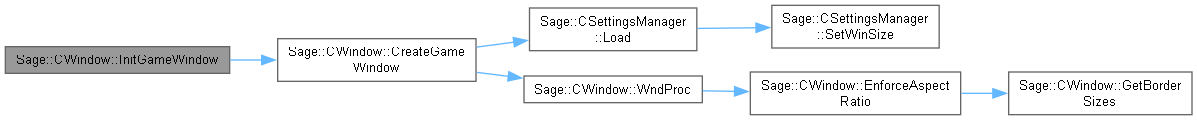

Here is the call graph for this function:

Here is the caller graph for this function:

OpenDebugConsole()

void CWindow::OpenDebugConsole ( )

protected

Open a console window and redirect stdout, stderr and stdin to it so that can be used for debug output using printf.

Here is the caller graph for this function:

WinMain()

template<typename t0 , typename t1 , typename t2 >

int Sage::CWindow::WinMain	(	_In_ HINSTANCE	hInst,
		bool	console,
		const t0 &	InitFn,
		const t1 &	UpdateFn,
		const t2 &	CloseFn )

Do setup, maintain a message pump that does game animation whenever there's no message waiting, and exit the message pump on WM_QUIT. Then do cleanup and exit the application.

Template Parameters

t0	Type of initialization function.
t1	Type of update function.
t2	Type of close function.

Parameters

hInst	Handle to window instance.
console	True if a console debug window is wanted.
InitFn	Initialization function.
UpdateFn	Update function.
CloseFn	Close function.

Returns

Wparam from the WM_QUIT message.

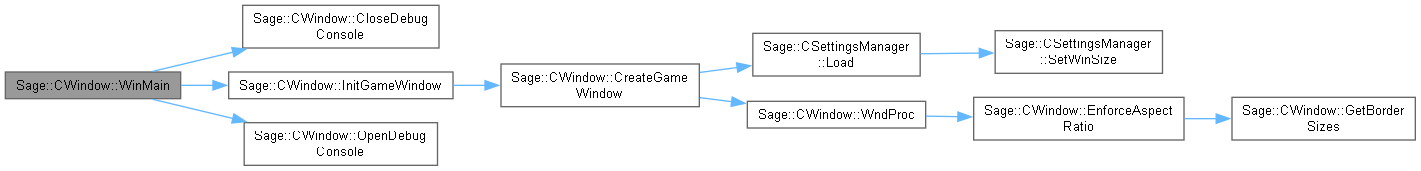

Here is the call graph for this function:

WndProc()

LRESULT CALLBACK CWindow::WndProc ( HWND h, UINT m, WPARAM wp, LPARAM lp )

staticprotected

Default window procedure.

This is the handler for messages from the operating system.

Parameters

h	Window handle.
m	Message code.
wp	Parameter for message.
lp	Second parameter for message.

Returns

0 If message is handled.

Here is the call graph for this function:

Here is the caller graph for this function:
