Sage::CSound Class Reference

The Sound Player. More...

#include <SageSound.h>

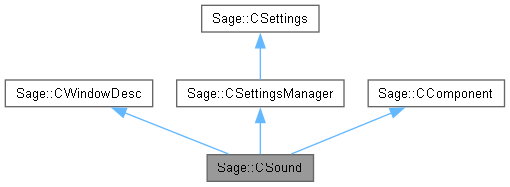

Inheritance diagram for Sage::CSound:

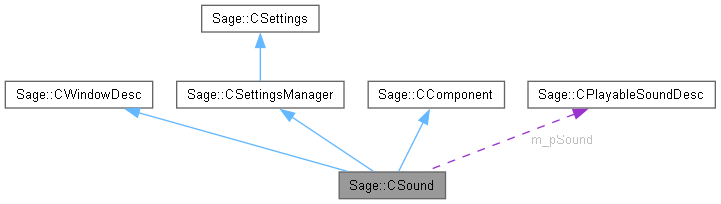

Collaboration diagram for Sage::CSound:

Public Member Functions
	CSound ()
	Constructor.
	~CSound ()
	Destructor.
template<class t >
void	LoadMT (Sage::CMediaList< t > &)
	Load sounds multithreaded.
template<class t >
void	Load (Sage::CMediaList< t > &)
	Load sounds.
const bool	Loaded () const
	Sound loading completed.
template<class t >
void	Load (t, const char *)
	Load sound.
template<class t >
CSoundDesc	Play (t, const Vector2 &, float=1.0f, float=0.0f)
	Play sound.
template<class t >
CSoundDesc	Play (t, const Vector3 &, float=1.0f, float=0.0f)
	Play sound.
template<class t >
CSoundDesc	Play (t, float=1.0f)
	Play sound.
template<class t >
CSoundDesc	Play (t, float, float)
	Play sound.
template<class t >
CSoundDesc	Loop (t)
	Loop a sound.
template<class t >
CSoundDesc	Loop (t, const Vector2 &)
	Loop a sound.
template<class t >
CSoundDesc	Loop (t, const Vector3 &)
	Loop a sound.
template<class t >
CSoundDesc	Vary (t, float=0.1f, float=1, float=0)
	Play a randomly varied sound.
template<class t >
CSoundDesc	Vary (t, const Vector2 &, float=0.1f, float=1, float=0)
	Play a randomly varied sound.
template<class t >
CSoundDesc	Vary (t, const Vector3 &, float=0.1f, float=1, float=0)
	Play a randomly varied sound.
void	BeginFrame ()
	Start of frame notification.
void	Mute ()
	Mute/unmute the sounds.
void	Stop ()
	Stop all sounds.
template<class t >
void	Stop (t)
	Stop a sound.
void	Stop (const CSoundDesc &)
	Stop a sound instance.
void	SetPitch (const CSoundDesc &, float)
	Set pitch.
void	SetListenerPos (const Vector3 &)
	Set listener position.
void	SetListenerPos (const Vector2 &)
	Set listener position.
void	SetListenerOrient (const Vector3 &, const Vector3 &)
	Set listener orientation.
void	SetListener (CCamera *)
	Set listener to camera pos and orientation.
void	SetScale (const float)
	Set scale for the sound world.
Public Member Functions inherited from Sage::CSettingsManager
void	Load ()
	Load game settings.

Protected Member Functions
void	Initialize (size_t)
	Initialize.
void	CreateInstances (size_t, size_t, SOUND_EFFECT_INSTANCE_FLAGS)
	Create sound instances.
void	LoadByIndex (size_t, const char *)
	Load sound by index.
size_t	GetNextInstance (size_t)
	Get the next instance that is not playing.
Protected Member Functions inherited from Sage::CSettingsManager
void	SetWinSize (int, int)
	Set window size information.

Protected Attributes
std::unique_ptr< AudioEngine >	m_pAudioEngine
	Pointer to an audio engine.
CPlayableSoundDesc *	m_pSound = nullptr
	Playable sounds.
size_t	m_nCount = 0
	Number of sounds.
AudioListener	m_cListener
	Audio listener.
Vector2	m_vEmitterPos
	Position of the emitter (the thing making the sound).
Vector3	m_vListenerPos
	Position of the listener.
bool	m_bMuted = false
	Whether mute is on.
float	m_fScale = 500.0f
	Coordinate scale factor.

Private Attributes
const float	DEPTH = 100.0f
	Default Z depth for 2D sounds.
bool	m_bLoaded = false
	Sounds loaded flag.

Additional Inherited Members
Static Protected Attributes inherited from Sage::CWindowDesc
static HWND	m_Hwnd = 0
	Window handle.
static HINSTANCE	m_hInst = 0
	Instance handle.
static bool	m_bExitSizeMove = true
	User just finished moving/resizing window.
Static Protected Attributes inherited from Sage::CSettingsManager
static tinyxml2::XMLElement *	m_pXmlSettings = nullptr
	Pointer to the settings tag in the XML settings file.
static float	m_fAspectRatio = 1.0f
	Aspect ratio, width/ht.
Static Protected Attributes inherited from Sage::CSettings
static char	m_szName [MAX_PATH]
	Name of this game.
static int	m_nWinWidth = 0
	Window width in pixels.
static int	m_nWinHeight = 0
	Window height in pixels.
static Vector2	m_vWinCenter = Vector2::Zero
	Window center.
Static Protected Attributes inherited from Sage::CComponent
static std::unique_ptr< CTimer >	m_pTimer = std::make_unique<CTimer>()
	Pointer to a timer.
static std::unique_ptr< CRandom >	m_pRandom = std::make_unique<CRandom>()
	Pointer to a PRNG.
static std::unique_ptr< CSound >	m_pSound = std::make_unique<CSound>()
	Pointer to sound manager.
static std::unique_ptr< CKeyboard >	m_pKeyboard
	Pointer to a keyboard handler.
static std::unique_ptr< CMouse >	m_pMouse = std::make_unique<CMouse>()
	Pointer to a mouse handler.
static std::unique_ptr< CController >	m_pController
	Pointer to a controller.

Detailed Description

The Sound Player allows you to play multiple overlapping copies of sounds simultaneously. It reads settings from the XML settings file, including a list of file names to be loaded. It can set the volume, pitch, and position of each sound instance played. Since it implements 3D sound, make sure your sound files are mono, not stereo. If you hear a horrible screeching sound instead of your nice sound sample, it probably means that your sound file is stereo, not mono. Use a sound editor such as Audacity to convert your sound from stereo to mono. Make sure you call BeginFrame once per frame to prevent multiple copies of a sound from playing at the same time, which only makes one sound but LOUDER.

Constructor & Destructor Documentation

CSound()

CSound::CSound

(

)

Set member variables to sensible values and initialize the XAudio Engine using DirectXTK12. If the compiler is in debug mode, then set the XAudio engine in debug mode too.

~CSound()

CSound::~CSound

(

)

Reclaim all dynamic memory and shut down the audio engine.

Member Function Documentation

BeginFrame()

void CSound::BeginFrame

(

)

Get ready for new animation frame by flagging all sounds as unplayed.

CreateInstances()

void CSound::CreateInstances ( size_t index, size_t n, SOUND_EFFECT_INSTANCE_FLAGS flags )

protected

Create sound instances.

Parameters

index	Index of sound.
n	Number of instances of sound wanted.
flags	Flags.

Here is the caller graph for this function:

GetNextInstance()

size_t CSound::GetNextInstance ( size_t index )

protected

Get the index into the instance array of the next unplayed instance of a sound.

Parameters

index

Index of sound in the sound array.

Returns

Index of next unplayed instance in its instance array.

Here is the caller graph for this function:

Initialize()

void CSound::Initialize ( size_t n )

protected

Delete old sound descriptors and create the required number of new ones.

Parameters

n	Number of sounds.

Here is the caller graph for this function:

Load() [1/2]

template<class t >

void Sage::CSound::Load

(

Sage::CMediaList< t > &

media

)

Load sounds synchronously from a media descriptor.

Template Parameters

t	Sound enumerated type.

Parameters

media

Media list.

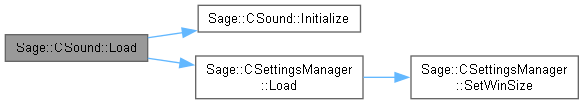

Here is the call graph for this function:

Load() [2/2]

template<class t >

void Sage::CSound::Load	(	t	e,
		const char *	name )

Load information about a sound from global variable g_xmlSettings, then load the sound sample as per that information. Abort if something goes wrong. Uses LoadByIndex() to do the actual work.

Template Parameters

t	Sound enumerated type.

Parameters

e	Sound type.
name	Sound name in XML file.

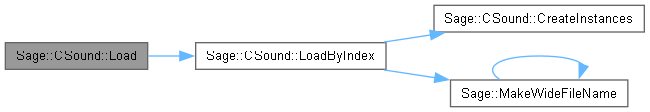

Here is the call graph for this function:

LoadByIndex()

void CSound::LoadByIndex ( size_t index, const char * name )

protected

Load information about a sound from global variable g_xmlSettings, then load sounds as per that information. Abort if something goes wrong.

Parameters

index	Sprite index.
name	Object name in XML file.

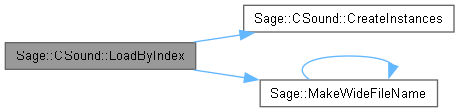

Here is the call graph for this function:

Here is the caller graph for this function:

Loaded()

const bool CSound::Loaded

(

)

const

Reader function for the loaded flag m_bLoaded.

Returns

true if loading completed.

LoadMT()

template<class t >

void Sage::CSound::LoadMT

(

Sage::CMediaList< t > &

media

)

Load sounds asynchronously from a media descriptor, that is, spawn a thread to do the loading. Member variable m_bLoaded will be set to true when loading is finished.

Template Parameters

t	Sound enumerated type.

Parameters

media

Media list.

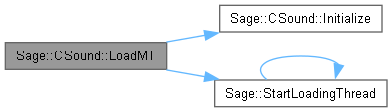

Here is the call graph for this function:

Loop() [1/3]

template<class t >

CSoundDesc Sage::CSound::Loop

(

t

e

)

Loop a sound effect in mono.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be looped.

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

Here is the caller graph for this function:

Loop() [2/3]

template<class t >

CSoundDesc Sage::CSound::Loop	(	t	e,
		const Vector2 &	s )

Loop a sound effect in stereo.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be looped.
s	Position of emitter in 2D.

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

Loop() [3/3]

template<class t >

CSoundDesc Sage::CSound::Loop	(	t	e,
		const Vector3 &	s )

Loop a sound effect in stereo.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be looped.
s	Position of emitter in 3D.

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

Mute()

void CSound::Mute

(

)

If the sound is muted, unmute it. If not, mute it. This means stopping sounds that are currently playing and preventing future sounds from getting started.

Here is the call graph for this function:

Play() [1/4]

template<class t >

CSoundDesc Sage::CSound::Play	(	t	e,
		const Vector2 &	s,
		float	vol = 1.0f,
		float	pitch = 0.0f )

Play a sound effect in stereo.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
s	Position of emitter in 2D.
vol	Volume (defaults to 1.0f).
pitch	Pitch (defaults to zero).

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

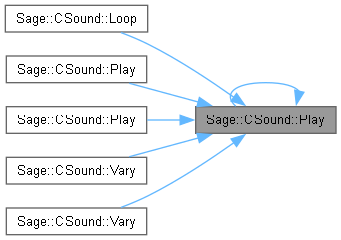

Here is the caller graph for this function:

Play() [2/4]

template<class t >

CSoundDesc Sage::CSound::Play	(	t	e,
		const Vector3 &	s,
		float	vol = 1.0f,
		float	p = 0.0f )

Play a sound effect in stereo.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
s	Position of emitter in 3D.
vol	Volume (defaults to 1.0f).
p	Pitch (defaults to zero).

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

Play() [3/4]

template<class t >

CSoundDesc Sage::CSound::Play	(	t	e,
		float	vol,
		float	pitch )

Play a sound effect in mono.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
vol	Volume.
pitch	Pitch.

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

Play() [4/4]

template<class t >

CSoundDesc Sage::CSound::Play	(	t	e,
		float	vol = 1.0f )

Play a sound effect in mono.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
vol	Volume (defaults to 1.0f).

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

SetListener()

void CSound::SetListener

(

CCamera *

pCamera

)

Set listener to camera pos and orientation.

Parameters

pCamera

Pointer to the camera.

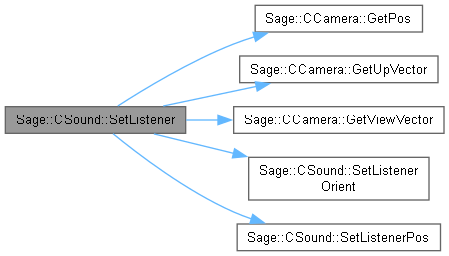

Here is the call graph for this function:

SetListenerOrient()

void CSound::SetListenerOrient	(	const Vector3 &	vLook,
		const Vector3 &	vUp )

Set the listener orientation from a pair of vectors.

Parameters

vLook	Look-at vector.
vUp	Up vector.

Here is the caller graph for this function:

SetListenerPos() [1/2]

void CSound::SetListenerPos

(

const Vector2 &

pos

)

Move the listener to a new position.

Parameters

pos	New position of listener.

Here is the call graph for this function:

SetListenerPos() [2/2]

void CSound::SetListenerPos

(

const Vector3 &

pos

)

Move the listener to a new position.

Parameters

pos	New position of listener.

Here is the caller graph for this function:

SetPitch()

void CSound::SetPitch	(	const CSoundDesc &	d,
		float	pitch )

Set the pitch of the first instance of a sound.

Parameters

d	Sound descriptor.
pitch	New pitch.

SetScale()

void CSound::SetScale

(

const float

scale

)

Set the scale factor for converting from render coordinates to sound coordinates.

Parameters

scale

Scale factor.

Stop() [1/3]

void CSound::Stop

(

)

Stop all instances of all sound effects.

Here is the call graph for this function:

Here is the caller graph for this function:

Stop() [2/3]

void CSound::Stop

(

const CSoundDesc &

d

)

Stop an instance of a sound effects.

Parameters

d	Descriptor for a sound instance.

Stop() [3/3]

template<class t >

void Sage::CSound::Stop

(

t

e

)

Stop all instances of a sound effect.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be stopped.

Here is the call graph for this function:

Vary() [1/3]

template<class t >

CSoundDesc Sage::CSound::Vary	(	t	e,
		const Vector2 &	s,
		float	var = 0.1f,
		float	vol = 1,
		float	p = 0 )

Play a sound effect in stereo, but slightly differently each time it is played. The pitch is varied up and down by a random amount scaled by a coefficient of variability that is provided as a parameter.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
s	Position of emitter in 2D.
var	Coefficient of variability (defaults to 0.25).
vol	Volume (defaults to 1.0).
p	Pitch (defaults to 0).

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:

Vary() [2/3]

template<class t >

CSoundDesc Sage::CSound::Vary	(	t	e,
		const Vector3 &	s,
		float	var = 0.1f,
		float	vol = 1,
		float	p = 0 )

Play a sound effect in stereo, but slightly differently each time it is played. The pitch is varied up and down by a random amount scaled by a coefficient of variability that is provided as a parameter.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
s	Position of emitter in 3D.
var	Coefficient of variability (defaults to 0.25).
vol	Volume (defaults to 1.0).
p	Pitch (defaults to 0).

Returns

Sound descriptor for playing sound.

Vary() [3/3]

template<class t >

CSoundDesc Sage::CSound::Vary	(	t	e,
		float	var = 0.1f,
		float	vol = 1,
		float	p = 0 )

Play a sound effect in mono, but slightly differently each time it is played. The pitch is varied up and down by a random amount scaled by a coefficient of variability that is provided as a parameter.

Template Parameters

t	Sound enumerated type.

Parameters

e	Type of sound to be played.
var	Coefficient of variability (defaults to 0.25).
vol	Volume (defaults to 1.0).
p	Pitch (defaults to 0).

Returns

Sound descriptor for playing sound.

Here is the call graph for this function:
