Sage::CController Class Reference

The controller class. More...

#include <SageController.h>

Public Member Functions
void	GetState ()
	Get controller's current state.
bool	IsConnected ()
	Query whether controller is connected.
void	Vibrate (WORD=0, WORD=0)
	Set left and right rumble.
const Vector2	GetRThumb () const
	Get position of right thumb stick.
const Vector2	GetLThumb () const
	Get position of left thumb stick.
const float	GetRTrigger () const
	Get position of right trigger.
const float	GetLTrigger () const
	Get position of left trigger.
const bool	GetButtonAToggle ()
	Get button A toggle state.
const bool	GetButtonBToggle ()
	Get button B toggle state.
const bool	GetButtonXToggle ()
	Get button X toggle state.
const bool	GetButtonYToggle ()
	Get button Y toggle state.
const bool	GetButtonADown ()
	Get button A state.
const bool	GetButtonBDown ()
	Get button B state.
const bool	GetButtonXDown ()
	Get button X state.
const bool	GetButtonYDown ()
	Get button Y state.
const bool	GetDPadRight () const
	Get digital pad right button state.
const bool	GetDPadLeft () const
	Get digital pad left button state.
const bool	GetDPadUp () const
	Get digital pad up button state.
const bool	GetDPadDown () const
	Get digital pad down button state.
const bool	GetButtonRSToggle ()
	Get right shoulder button toggle.
const bool	GetButtonLSToggle ()
	Get left shoulder button toggle.

Protected Member Functions
const bool	ButtonDown (DWORD) const
	Check button state.

Protected Attributes
XINPUT_STATE	m_strState
	Current state (polled each frame).
bool	m_bButtonADown = false
	A button is down.
bool	m_bButtonBDown = false
	B button is down.
bool	m_bButtonXDown = false
	X button is down.
bool	m_bButtonYDown = false
	Y button is down.
bool	m_bButtonLSDown = false
	Left shoulder button is down.
bool	m_bButtonRSDown = false
	Right shoulder button is down.

Detailed Description

Polled controller class providing access to control states and whether buttons have toggled (were up and went down) since the last frame.

Member Function Documentation

ButtonDown()

const bool CController::ButtonDown ( DWORD button ) const

protected

Test whether a button is currently down.

Parameters

button

Index of a button.

Returns

true if that button is down.

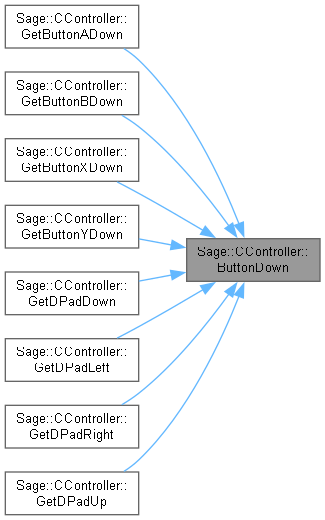

Here is the caller graph for this function:

GetButtonADown()

const bool CController::GetButtonADown

(

)

Test whether button A is down.

Returns

true if button A is down.

Here is the call graph for this function:

GetButtonAToggle()

const bool CController::GetButtonAToggle

(

)

Get button A toggle status. Uses m_bButtonADown to store previous button state.

Returns

true if button A was up and is now down.

GetButtonBDown()

const bool CController::GetButtonBDown

(

)

Test whether button B is down.

Returns

true if button B is down.

Here is the call graph for this function:

GetButtonBToggle()

const bool CController::GetButtonBToggle

(

)

Get button B toggle status. Uses m_bButtonBDown to store previous button state.

Returns

true if button B was up and is now down.

GetButtonLSToggle()

const bool CController::GetButtonLSToggle

(

)

Get left shoulder button toggle status. Uses m_bButtonLSDown to store previous button state.

Returns

true if left shoulder button was up and is now down.

GetButtonRSToggle()

const bool CController::GetButtonRSToggle

(

)

Get right shoulder button toggle status. Uses m_bButtonRSDown to store previous button state.

Returns

true if right shoulder button was up and is now down.

GetButtonXDown()

const bool CController::GetButtonXDown

(

)

Test whether button X is down.

Returns

true if button X is down.

Here is the call graph for this function:

GetButtonXToggle()

const bool CController::GetButtonXToggle

(

)

Get button X toggle status. Uses m_bButtonXDown to store previous button state.

Returns

true if button X was up and is now down.

GetButtonYDown()

const bool CController::GetButtonYDown

(

)

Test whether button Y is down.

Returns

true if button Y is down.

Here is the call graph for this function:

GetButtonYToggle()

const bool CController::GetButtonYToggle

(

)

Get button Y toggle status. Uses m_bButtonYDown to store previous button state.

Returns

true if button Y was up and is now down.

GetDPadDown()

const bool CController::GetDPadDown

(

)

const

Test whether the digital pad down button is currently down.

Returns

true if digital pad down button is down.

Here is the call graph for this function:

GetDPadLeft()

const bool CController::GetDPadLeft

(

)

const

Test whether the digital pad left button is currently down.

Returns

true if digital pad left button is down.

Here is the call graph for this function:

GetDPadRight()

const bool CController::GetDPadRight

(

)

const

Test whether the digital pad right button is currently down.

Returns

true if digital pad right button is down.

Here is the call graph for this function:

GetDPadUp()

const bool CController::GetDPadUp

(

)

const

Test whether the digital pad up button is currently down.

Returns

true if digital pad up button is down.

Here is the call graph for this function:

GetLThumb()

const Vector2 CController::GetLThumb

(

)

const

Get left thumb stick position.

Returns

Normalized left thumb stick position.

Here is the call graph for this function:

GetLTrigger()

const float CController::GetLTrigger

(

)

const

Get left trigger position.

Returns

Left trigger position as a float between 0 and 1.

GetRThumb()

const Vector2 CController::GetRThumb

(

)

const

Get right thumb stick position.

Returns

Normalized right thumb stick position.

Here is the call graph for this function:

GetRTrigger()

const float CController::GetRTrigger

(

)

const

Get right trigger position.

Returns

Right trigger position as a float between 0 and 1.

GetState()

void CController::GetState

(

)

Poll the controller and get its current state into m_strState. This function should be called once per frame.

IsConnected()

bool CController::IsConnected

(

)

Test whether there is a controller connected.

Returns

true if there is a controller connected.

Vibrate()

void CController::Vibrate	(	WORD	leftVal = 0,
		WORD	rightVal = 0 )

Set controller's left and right vibration level. Note: calling this function with no parameters defaults to all stop.

Parameters

leftVal	Left vibrate speed from zero to max unsigned short.
rightVal	Right vibrate speed from zero to max unsigned short.
