CObjectManager Class Reference

The object manager. More...

#include <ObjectManager.h>

Inheritance diagram for CObjectManager:

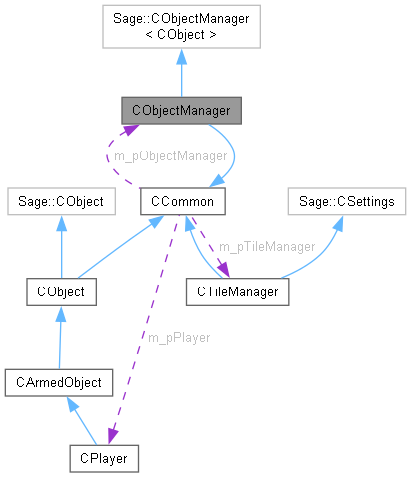

Collaboration diagram for CObjectManager:

Public Member Functions
CObject *	Create (eObject, const Vector2 &, float=0.0f)
	Create new object.
void	Draw ()
	Draw all objects.
void	FireGun (CArmedObject *)
	Fire armed object's gun.
const UINT	GetNumGuards () const
	Get the number of guards.

Private Member Functions
void	BroadPhase ()
	Broad phase collision detection and response.
void	NarrowPhase (CObject *, CObject *)
	Narrow phase collision detection and response.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static CTileManager *	m_pTileManager = nullptr
	Pointer to tile manager.
static CPlayer *	m_pPlayer = nullptr
	Pointer to player character.
static Vector2	m_vWorldSize
	World height and width.
static bool	m_bGodMode = false
	God mode flag.
static bool	m_bShowState = false
	Show NPC state flag.
static bool	m_bShowBounds = false
	Draw bounding boxes and circles flag.

Detailed Description

A collection of all of the game objects.

Member Function Documentation

BroadPhase()

void CObjectManager::BroadPhase ( )

private

Perform collision detection and response for each object with the world edges and for all objects with another object, making sure that each pair of objects is processed only once.

Here is the call graph for this function:

Create()

CObject * CObjectManager::Create	(	eObject	t,
		const Vector2 &	pos,
		float	d = 0.0f )

Create an object and put a pointer to it at the back of the object list m_stdObjectList, which it inherits from Sage::CBaseObjectManager.

Parameters

t	Object type.
pos	Initial position.
d	Initial orientation.

Returns

Pointer to the object created.

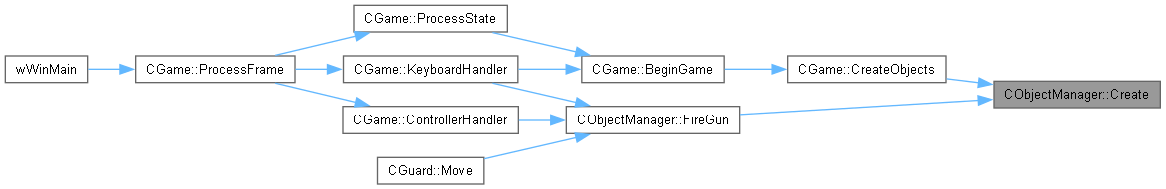

Here is the caller graph for this function:

Draw()

void CObjectManager::Draw

(

)

Draw the tiled background and the objects in the object list.

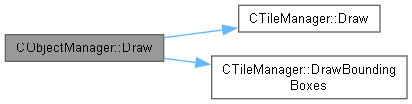

Here is the call graph for this function:

Here is the caller graph for this function:

FireGun()

void CObjectManager::FireGun

(

CArmedObject *

pObj

)

Create a bullet object and a flash particle effect. It is assumed that the object is round and that the bullet appears at the edge of the object in the direction that it is facing and continues moving in that direction.

Parameters

pObj	Pointer to an armed object.

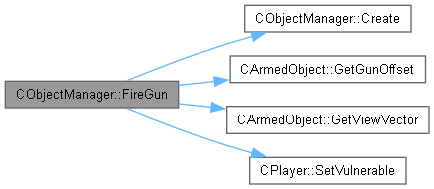

Here is the call graph for this function:

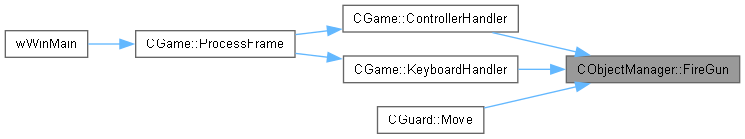

Here is the caller graph for this function:

GetNumGuards()

const UINT CObjectManager::GetNumGuards

(

)

const

Get the number of guards.

Returns

The number of guards.

Here is the caller graph for this function:

NarrowPhase()

void CObjectManager::NarrowPhase ( CObject * p0, CObject * p1 )

private

Perform collision detection and response for a pair of objects.

Parameters

p0	Pointer to the first object.
p1	Pointer to the second object.

Here is the call graph for this function:
