CObject Class Reference

The game object. More...

#include <Object.h>

Inheritance diagram for CObject:

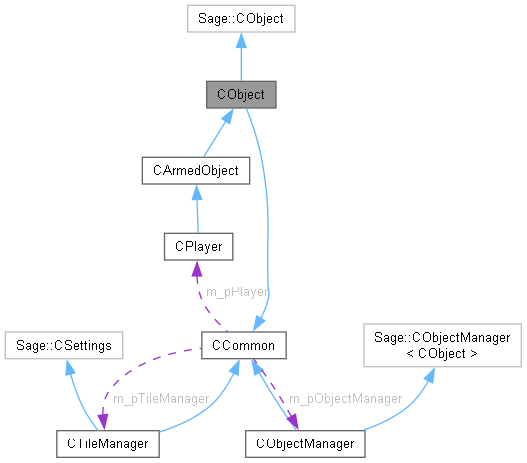

Collaboration diagram for CObject:

Public Member Functions
	CObject (eObject, eSprite, const Vector2 &, float=0)
	Constructor.
virtual	~CObject ()
	Destructor.
void	Draw ()
	Draw object.
const eObject	GetType () const
	Get object type.
const Vector2 &	GetPos () const
	Get position.

Protected Member Functions
virtual void	CollisionResponse (const Vector2 &, float, CObject *=nullptr)
	Collision response.

Protected Attributes
eObject	m_eObject = eObject::Unknown
	Object type.
eSprite	m_eSprite = eSprite::Player
	Sprite type.
float	m_fScale = 1.0f
	Scale.
Vector2	m_vPos
	Position.
float	m_fRoll = 0
	Roll angle.
float	m_fRadius = 0
	Damage bounding circle radius.
Vector2	m_vCenterOffset
	Sprite center offset.
float	m_fCollisionRadius = 0.0f
	Collision radius.

Friends
class	CObjectManager
	Object manager needs access so it can manage.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static CTileManager *	m_pTileManager = nullptr
	Pointer to tile manager.
static CPlayer *	m_pPlayer = nullptr
	Pointer to player character.
static Vector2	m_vWorldSize
	World height and width.
static bool	m_bGodMode = false
	God mode flag.
static bool	m_bShowState = false
	Show NPC state flag.
static bool	m_bShowBounds = false
	Draw bounding boxes and circles flag.

Detailed Description

The abstract representation of an object. CObjectManager is a friend of this class so that it can access any private members as needed to manage the objects without the need for reader and set functions for each private or protected member variable.

Constructor & Destructor Documentation

CObject()

CObject::CObject	(	eObject	obj,
		eSprite	spr,
		const Vector2 &	p,
		float	d = 0 )

Create and initialize an object.

Parameters

obj	Object type.
spr	Sprite type.
p	Initial position.
d	Initial orientation.

Member Function Documentation

CollisionResponse()

void CObject::CollisionResponse ( const Vector2 & norm, float d, CObject * pObj = nullptr )

protectedvirtual

Response to a collision, which is to move back the overlap distance along the collision normal.

Parameters

norm	Collision normal.
d	Overlap distance.
pObj	Pointer to object being collided with (defaults to nullptr, which means collision with a wall).

Reimplemented in CBullet, CGuard, and CPlayer.

Here is the caller graph for this function:

Draw()

void CObject::Draw

(

)

Draw sprite.

GetPos()

const Vector2 & CObject::GetPos

(

)

const

Reader function for position.

Returns

Position.

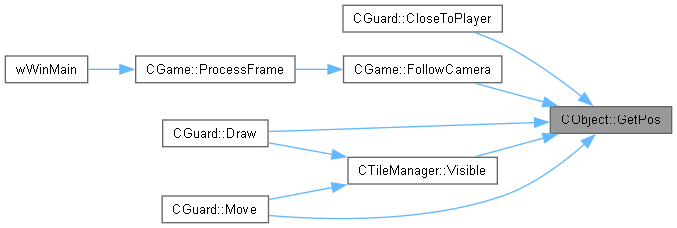

Here is the caller graph for this function:

GetType()

const eObject CObject::GetType

(

)

const

Reader function for the object type.

Returns

The object type.

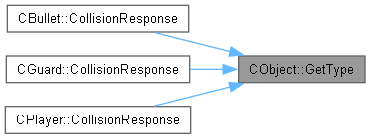

Here is the caller graph for this function:
