CObject Class Reference

The game object. More...

#include <Object.h>

Inheritance diagram for CObject:

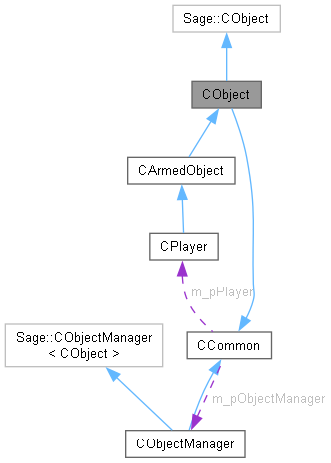

Collaboration diagram for CObject:

Public Member Functions
	CObject (eObject, eSprite, const Vector2 &)
	Constructor.
virtual	~CObject ()
	Destructor.
virtual void	Move ()
	Move object.
virtual void	Draw ()
	Draw object.
virtual void	CollisionResponse (const Vector2 &, float, CObject *=nullptr)
	Collision response.
const eObject	GetType () const
	Get object type.

Protected Attributes
eObject	m_eObject = eObject::Unknown
	Object type.
eSprite	m_eSprite = eSprite::Player
	Sprite type.
Vector2	m_vPos
	Position.
float	m_fRoll = 0
	Roll angle.
float	m_fRadius = 0
	Bounding circle radius.

Friends
class	CObjectManager
	Object manager needs access so it can manage.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static CPlayer *	m_pPlayer = nullptr
	Pointer to player character.
static bool	m_bGodMode = false
	God mode flag.
static bool	m_bShowState = false
	Show NPC state flag.
static bool	m_bShowBounds = false
	Show collision circle flag.

Detailed Description

The abstract representation of an object. CObjectManager is a friend of this class so that it can access any private members as needed to manage the objects without the need for reader and set functions for each private or protected member variable. This class must contain public member functions Move() and Draw() to move and draw the object, respectively.

Constructor & Destructor Documentation

CObject()

CObject::CObject	(	eObject	obj,
		eSprite	spr,
		const Vector2 &	p )

Create and initialize an object.

Parameters

obj	Object type.
spr	Sprite type.
p	Initial position of object.

Member Function Documentation

CollisionResponse()

void CObject::CollisionResponse ( const Vector2 & norm, float d, CObject * pObj = nullptr )

virtual

Response to a collision, which is to move back the overlap distance along the collision normal.

Parameters

norm	Collision normal.
d	Overlap distance.
pObj	Pointer to object being collided with (defaults to nullptr, which means collision with a wall).

Reimplemented in CBullet, CGuard, and CPlayer.

Here is the caller graph for this function:

Draw()

void CObject::Draw ( )

virtual

Draw sprite.

Reimplemented in CArmedObject, and CGuard.

GetType()

const eObject CObject::GetType

(

)

const

Reader function for the object type.

Returns

The object type.

Here is the caller graph for this function:

Move()

void CObject::Move ( )

virtual

Stub.

Reimplemented in CArmedObject, CBullet, CGuard, and CPlayer.
