CGuard Class Reference

The guard object. More...

#include <Guard.h>

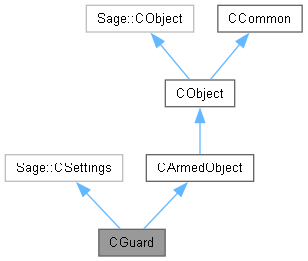

Inheritance diagram for CGuard:

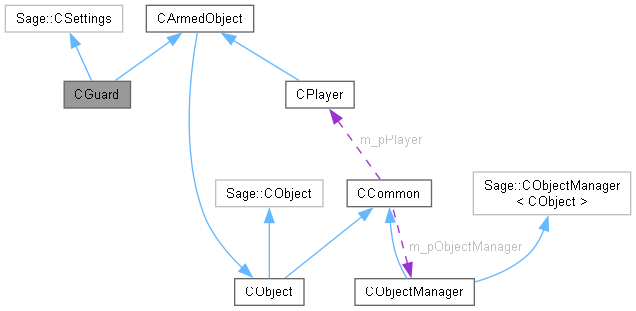

Collaboration diagram for CGuard:

Public Member Functions
	CGuard (const Vector2 &)
	Constructor.
	~CGuard ()
	Destructor.
void	Move ()
	Move.
void	Draw ()
	Draw.
Public Member Functions inherited from CArmedObject
	CArmedObject (eObject, eSprite, const Vector2 &)
	Constructor.
virtual	~CArmedObject ()
	Destructor.
void	CreateParticle (const Sage::CParticleDesc2D &)
Public Member Functions inherited from CObject
	CObject (eObject, eSprite, const Vector2 &)
	Constructor.
virtual	~CObject ()
	Destructor.
const eObject	GetType () const
	Get object type.

Protected Member Functions
const bool	CloseToPlayer (const float) const
	Is close to player.
void	CollisionResponse (const Vector2 &, float, CObject *=nullptr)
	Collision response.
void	ChangeState (eState)
	Change state.
void	DrawState ()
	Draw state text.
const std::wstring	GetStateString () const
	Get state text.
Protected Member Functions inherited from CArmedObject
const Vector2	GetViewVector () const
	Compute view vector.
const Vector2	GetGunOffset () const
	Get gun offset.
bool	RotateTowards (const Vector2 &)
	Swivel towards position.
void	DeathFX ()
	Death special effects.

Protected Attributes
eState	m_eState = eState::Alert
	Guard state.
bool	m_bCCW = true
	Whether to scan counterclockwise.
Sage::CEventTimer *	m_pWaitEvent = nullptr
	Wait event.
Sage::CEventTimer *	m_pAlertEvent = nullptr
	Alert event.
Sage::CEventTimer *	m_pScanningEvent = nullptr
	Scanning event.
Sage::CEventTimer *	m_pFrameEvent = nullptr
	Stray event timer.
Sage::CEventTimer *	m_pGunFireEvent = nullptr
	Gun fire event.
Protected Attributes inherited from CArmedObject
UINT	m_nHealth = 1
	Current health.
float	m_fRotSpeed = 0
	Rotational speed.
Vector2	m_vCenterOffset
	Sprite center offset.
Vector2	m_vGunOffset
	Sprite gun offset.
Sage::CParticleEngine2D *	m_pLocalParticleEngine = nullptr
	Pointer to particle engine.
Protected Attributes inherited from CObject
eObject	m_eObject = eObject::Unknown
	Object type.
eSprite	m_eSprite = eSprite::Player
	Sprite type.
Vector2	m_vPos
	Position.
float	m_fRoll = 0
	Roll angle.
float	m_fRadius = 0
	Bounding circle radius.

Private Types
enum class	eState { Alert , Waiting , Scanning , Reloading }
	State of mind. More...

Friends
class	CObjectManager
	Object manager needs access so it can manage.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static CPlayer *	m_pPlayer = nullptr
	Pointer to player character.
static bool	m_bGodMode = false
	God mode flag.
static bool	m_bShowState = false
	Show NPC state flag.
static bool	m_bShowBounds = false
	Show collision circle flag.

Detailed Description

The abstract representation of a guard`.

Member Enumeration Documentation

eState

enum class CGuard::eState

strongprivate

Possible states of mind for a guard.

Constructor & Destructor Documentation

CGuard()

CGuard::CGuard

(

const Vector2 &

p

)

Create and initialize a guard object given its position.

Parameters

p	Position of guard.

Here is the call graph for this function:

~CGuard()

CGuard::~CGuard

(

)

The destructor deletes the event timers created by the constructor.

Member Function Documentation

ChangeState()

void CGuard::ChangeState ( eState newState )

protected

Change state and perform any processing associated with entering the new state. Does nothing if there is no change in state, that is, the new state is the same as the current state.

Parameters

newState

The new state.

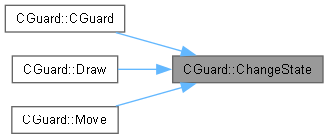

Here is the caller graph for this function:

CloseToPlayer()

const bool CGuard::CloseToPlayer ( const float d ) const

protected

Player proximity test.

Parameters

d	Required distance to player.

Returns

true if within required distance of player.

Here is the call graph for this function:

Here is the caller graph for this function:

CollisionResponse()

void CGuard::CollisionResponse ( const Vector2 & norm, float d, CObject * pObj = nullptr )

protectedvirtual

Response to collision. If colliding with a bullet, play a sound, decrement health, and if health is zero then die.

Parameters

norm	Collision normal.
d	Overlap distance.
pObj	Pointer to object being collided with (defaults to nullptr, which means collision with a wall).

Reimplemented from CObject.

Here is the call graph for this function:

Draw()

void CGuard::Draw ( )

virtual

Draw the current frame of the sprite offset by the center offset value. The current frame will be 0 if not reloading. Change state from Reloading to Waiting once the reloading animation has finished.

Reimplemented from CArmedObject.

Here is the call graph for this function:

DrawState()

void CGuard::DrawState ( )

protected

Draw the current state as a text string near the guard location on the screen.

Here is the call graph for this function:

Here is the caller graph for this function:

GetStateString()

const std::wstring CGuard::GetStateString ( ) const

protected

Get a string that describes the current state. This will be used to draw the guard's current state on the screen if the player so desires.

Returns

String that describes the current state.

Here is the caller graph for this function:

Move()

void CGuard::Move ( )

virtual

Take action based on state.

Reimplemented from CArmedObject.

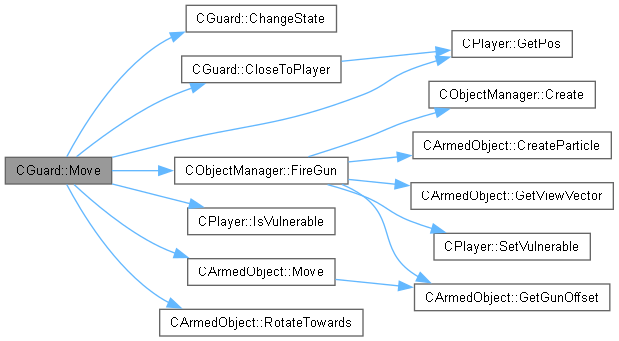

Here is the call graph for this function:
