CTileManager Class Reference

Tile manager. More...

#include <TileManager.h>

Inheritance diagram for CTileManager:

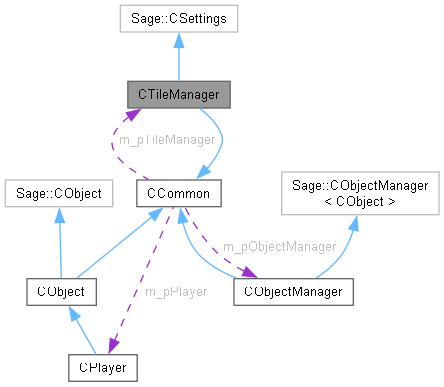

Collaboration diagram for CTileManager:

Public Member Functions
	CTileManager (size_t)
	Constructor.
	~CTileManager ()
	Destructor.
void	LoadMap (const std::string &)
	Load a map.
void	Draw (eSprite)
	Draw the map using multi-framed tile sprite.
void	DrawBoundingBoxes (eSprite)
	Draw the bounding boxes.
const std::vector< CObjectDesc > &	GetObjects () const
	Get object descriptorss.
const bool	CollideWithWall (BoundingSphere, Vector2 &, float &) const
	Object-wall collision test.

Private Member Functions
void	MakeBoundingBoxes ()
	Make bounding boxes for walls.
void	MakeBoundingBoxesH ()
	Make bounding boxes for horizontal walls.
void	MakeBoundingBoxesV ()
	Make bounding boxes for vertical walls.
void	MakeBoundingBoxes1 ()
	Make bounding boxes for 1-block walls.
Vector2	IndexToPosition (size_t, size_t)
	Tile index to position.
void	InsertObject (eObject, const Vector2 &)
	Insert object.

Private Attributes
size_t	m_nWidth = 0
	Number of tiles wide.
size_t	m_nHeight = 0
	Number of tiles high.
float	m_fTileSize = 0.0f
	Tile width and height.
char **	m_chMap = nullptr
	The level map.
std::vector< BoundingBox >	m_vecWalls
	AABBs for the walls.
std::vector< CObjectDesc >	m_vecObjects
	Object descriptors.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static CTileManager *	m_pTileManager = nullptr
	Pointer to tile manager.
static CPlayer *	m_pPlayer = nullptr
	Pointer to player character.
static Vector2	m_vWorldSize
	World height and width.
static bool	m_bGodMode = false
	God mode flag.
static bool	m_bShowBounds = false
	Draw bounding boxes and circles flag.
static eGameState	m_eGameState = eGameState::Loading
	Game state.

Detailed Description

The tile manager is responsible for the tile-based background and matters arising therefrom. See Section 5 of the documentation for more details.

Constructor & Destructor Documentation

CTileManager()

CTileManager::CTileManager

(

size_t

n

)

Construct a tile manager using square tiles, given the width and height of each tile.

Parameters

n	Width and height of square tile in pixels.

~CTileManager()

CTileManager::~CTileManager

(

)

Delete the memory used for storing the map.

Member Function Documentation

CollideWithWall()

const bool CTileManager::CollideWithWall	(	BoundingSphere	s,
		Vector2 &	norm,
		float &	d ) const

Check whether a bounding sphere collides with one of the wall bounding boxes. If so, compute the collision normal and the overlap distance. This function assumes that if there is any overlap at all, then the sphere overlaps either a single corner point of the bounding box, or if not, then a single edge of the bounding box in the XY plane. This is a reasonable assumption for a 2D game in which objects move only a small distance in each frame. If the sphere overlaps more than one bounding box in the bounding box list, then the first one is used. Therefore this function will need to be called more than once per animation frame.

Parameters

s	Bounding sphere of object.
norm	[out] Collision normal.
d	[out] Overlap distance.

Returns

true if the bounding sphere overlaps a wall.

Here is the caller graph for this function:

Draw()

void CTileManager::Draw

(

eSprite

t

)

Draw order is top-down, left-to-right so that the image agrees with the map text file viewed in NotePad.

Parameters

t	Sprite type for a 3-frame sprite: 0 is floor, 1 is wall, 2 is an error tile.

Here is the caller graph for this function:

DrawBoundingBoxes()

void CTileManager::DrawBoundingBoxes

(

eSprite

t

)

This is for debug purposes so that you can verify that the collision shapes are in the right places.

Parameters

t	Line sprite to be stretched to draw the line.

Here is the caller graph for this function:

GetObjects()

const std::vector< CObjectDesc > & CTileManager::GetObjects

(

)

const

Get object descriptors for objects listed on map.

Returns

A reference to m_vecObjects.

Here is the caller graph for this function:

IndexToPosition()

Vector2 CTileManager::IndexToPosition ( size_t i, size_t j )

private

Get the position of the center a tile from its row and column indices.

Parameters

i	Row number.
j	Column number.

Returns

Position of center of tile.

Here is the caller graph for this function:

InsertObject()

void CTileManager::InsertObject ( eObject t, const Vector2 & v )

private

Insert an object into our vector of map objects m_vecObjects.

Parameters

t	Type.
v	Position.

Here is the caller graph for this function:

LoadMap()

void CTileManager::LoadMap

(

const std::string &

filename

)

Delete the old map (if any), allocate the right sized chunk of memory for the new map, and read it from a text file.

Parameters

filename

Name of the map file.

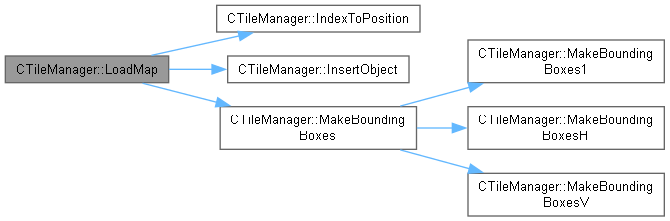

Here is the call graph for this function:

Here is the caller graph for this function:

MakeBoundingBoxes()

void CTileManager::MakeBoundingBoxes ( )

private

Make the AABBs for the walls. Care is taken to use the longest horizontal and vertical AABBs possible so that there aren't so many of them.

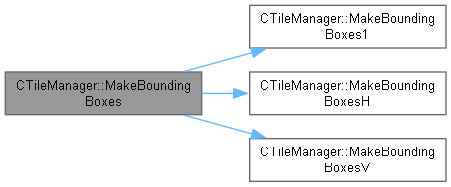

Here is the call graph for this function:

Here is the caller graph for this function:

MakeBoundingBoxes1()

void CTileManager::MakeBoundingBoxes1 ( )

private

Make bounding boxes that consist of a single tile.

Here is the caller graph for this function:

MakeBoundingBoxesH()

void CTileManager::MakeBoundingBoxesH ( )

private

Make horizontal bounding boxes that we as long as possible but skip any walls that consist of just a single tile.

Here is the caller graph for this function:

MakeBoundingBoxesV()

void CTileManager::MakeBoundingBoxesV ( )

private

Make vertical bounding boxes that we as long as possible but skip any walls that consist of just a single tile.

Here is the caller graph for this function:
