CPlaneObject Class Reference

The plane object. More...

#include <PlaneObject.h>

Inheritance diagram for CPlaneObject:

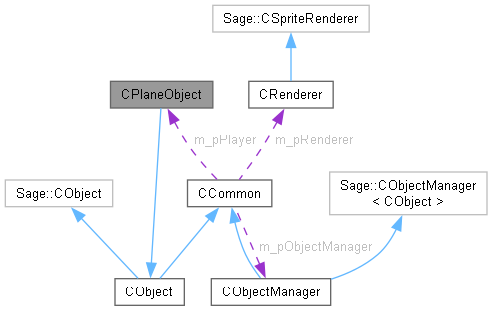

Collaboration diagram for CPlaneObject:

Public Member Functions
	CPlaneObject ()
	Default constructor.
	CPlaneObject (const Vector3 &)
	Constructor.
	~CPlaneObject ()
	Destructor.
void	Move ()
	Move object.
void	GetGunMuzzle (Vector3 &, Vector3 &) const
	Get muzzle position and direction.
void	GunFireFx ()
	Gun fire particle effects.
void	SetVel (const Vector3 &)
	Set velocity.
void	SetRoll (float)
	Rotate around Z-axis.
Public Member Functions inherited from CObject
	CObject ()
	Default constructor.
	CObject (eSprite, const Vector3 &)
	Constructor.
virtual	~CObject ()
	Destructor.
void	Kill ()
	Kill the object.
bool	TooOld ()
	Kill me.
void	GetRenderList (std::vector< Sage::CSpriteDesc3D > &)
	Get render list.
const Vector3 &	GetPos () const
	Get position.
const Vector3 &	GetVel () const
	Get velocity.
const float	GetRoll () const
	Get roll angle.
const eSprite	GetType () const
	Get sprite type.
void	SetRotSpeed (float)
	Set roll speed.
void	SetLifeTime (float)
	Set lifetime.
Public Member Functions inherited from CCommon
float	Wrap (float)
	Wrap horizontal distance.

Private Member Functions
void	EmitSmoke ()
	Emit smoke particle periodically.

Private Attributes
float	m_fSmokeTimer = 0.0f
	Last time smoke was emitted.
float	m_fDamage = 0.0f
	Damage taken, between 0.0f and 1.0f.
Sage::CSoundDesc	m_sSoundDesc
	Engine sound descriptor.

Additional Inherited Members
Protected Attributes inherited from CObject
Sage::CSpriteDesc3D *	m_pSpriteDesc = nullptr
	Pointer to sprite descriptor.
Vector3	m_vVel = Vector3::Zero
	Velocity.
float	m_fRollSpeed = 0.0f
	Roll speed in revs per second.
float	m_fFrameTimer = 0.0f
	Last time the frame was changed.
float	m_fFrameInterval = 0.1f
	Interval between frames.
float	m_fBirthTime = 0.0f
	Time of creation.
float	m_fLifeTime = FLT_MAX
	Time that object lives.
Sage::CParticleEngine3D *	m_pParticleEngine = nullptr
	Pointer to a particle engine.
Static Protected Attributes inherited from CCommon
static CRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static CPlaneObject *	m_pPlayer = nullptr
	Pointer to player character.
static float	m_fWorldScale = 2.0f
	World scale.
static Vector3	m_vCellSize = Vector3::Zero
	Cell size.
static UINT	m_nNumCells = 3
	Number of cells.
static float	m_fWorldWidth = 0.0f
	World width.
static eDrawMode	m_eDrawMode = eDrawMode::Playing
	Draw mode.
static eGameState	m_eGameState = eGameState::Loading
	Game state.

Detailed Description

The plane object is the player object.

Constructor & Destructor Documentation

CPlaneObject()

CPlaneObject::CPlaneObject

(

const Vector3 &

p

)

Parameters

p	Initial position of plane.

Member Function Documentation

EmitSmoke()

void CPlaneObject::EmitSmoke ( )

private

Emit smoke particles proportional to the amount of damage that the plane has taken.

Here is the caller graph for this function:

GetGunMuzzle()

void CPlaneObject::GetGunMuzzle	(	Vector3 &	pos,
		Vector3 &	direction ) const

Get muzzle position in local space and its look-at vector. Offsets are hard-coded from the plane sprite.

Parameters

pos	[OUT] Gun muzzle position.
direction	[OUT] Gun muzzle direction.

Here is the caller graph for this function:

GunFireFx()

void CPlaneObject::GunFireFx

(

)

Assumes that m_vMuzzlePos has already been set to the gun muzzle's position.

Here is the call graph for this function:

Here is the caller graph for this function:

Move()

void CPlaneObject::Move ( )

virtual

Move the plane, animate its particle engine, enforce upper and lower bounds on the plane's elevation and take damage if it hits the ground. Emit smoke if damaged. Move the audio listener point to the plane's current position.

Reimplemented from CObject.

Here is the call graph for this function:

SetRoll()

void CPlaneObject::SetRoll ( float angle )

virtual

Writer function for the roll angle.

Parameters

angle

New roll angle.

Reimplemented from CObject.

Here is the call graph for this function:

Here is the caller graph for this function:

SetVel()

void CPlaneObject::SetVel ( const Vector3 & v )

virtual

Writer function for the plane's velocity. Ensure that its x comnponent doesn't get too big or too small, and adjust the engine sound's pitch proportional to speed.

Parameters

v	New velocity.

Reimplemented from CObject.

Here is the call graph for this function:

Here is the caller graph for this function:
