CObject Class Reference

The game object. More...

#include <Object.h>

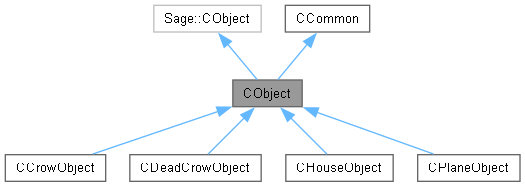

Inheritance diagram for CObject:

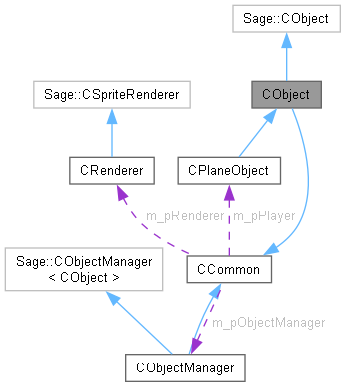

Collaboration diagram for CObject:

Public Member Functions
	CObject ()
	Default constructor.
	CObject (eSprite, const Vector3 &)
	Constructor.
virtual	~CObject ()
	Destructor.
virtual void	Move ()
	Move me.
void	Kill ()
	Kill the object.
bool	TooOld ()
	Kill me.
void	GetRenderList (std::vector< Sage::CSpriteDesc3D > &)
	Get render list.
const Vector3 &	GetPos () const
	Get position.
const Vector3 &	GetVel () const
	Get velocity.
const float	GetRoll () const
	Get roll angle.
const eSprite	GetType () const
	Get sprite type.
virtual void	SetVel (const Vector3 &)
	Set velocity.
virtual void	SetRoll (float)
	Set roll angle.
void	SetRotSpeed (float)
	Set roll speed.
void	SetLifeTime (float)
	Set lifetime.
Public Member Functions inherited from CCommon
float	Wrap (float)
	Wrap horizontal distance.

Protected Attributes
Sage::CSpriteDesc3D *	m_pSpriteDesc = nullptr
	Pointer to sprite descriptor.
Vector3	m_vVel = Vector3::Zero
	Velocity.
float	m_fRollSpeed = 0.0f
	Roll speed in revs per second.
float	m_fFrameTimer = 0.0f
	Last time the frame was changed.
float	m_fFrameInterval = 0.1f
	Interval between frames.
float	m_fBirthTime = 0.0f
	Time of creation.
float	m_fLifeTime = FLT_MAX
	Time that object lives.
Sage::CParticleEngine3D *	m_pParticleEngine = nullptr
	Pointer to a particle engine.

Friends
class	CObjectManager

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static CRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static CPlaneObject *	m_pPlayer = nullptr
	Pointer to player character.
static float	m_fWorldScale = 2.0f
	World scale.
static Vector3	m_vCellSize = Vector3::Zero
	Cell size.
static UINT	m_nNumCells = 3
	Number of cells.
static float	m_fWorldWidth = 0.0f
	World width.
static eDrawMode	m_eDrawMode = eDrawMode::Playing
	Draw mode.
static eGameState	m_eGameState = eGameState::Loading
	Game state.

Detailed Description

The abstract representation of an object. CObjectManager is a friend of this class so that it can access any private members as needed to manage the objects without the need for reader and set functions for each private or protected member variable.

Constructor & Destructor Documentation

CObject()

CObject::CObject	(	eSprite	t,
		const Vector3 &	p )

Constructor.

Parameters

t	Type of sprite.
p	Initial position of object.

Member Function Documentation

GetPos()

const Vector3 & CObject::GetPos

(

)

const

Reader function for position.

Returns

Position.

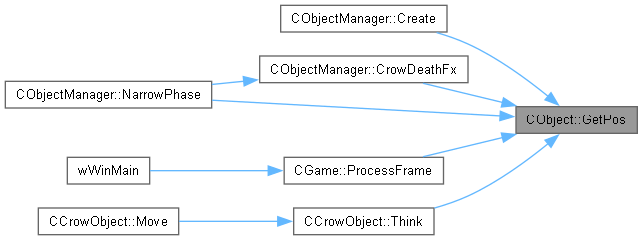

Here is the caller graph for this function:

GetRenderList()

void CObject::GetRenderList

(

std::vector< Sage::CSpriteDesc3D > &

renderlist

)

Append the render list for the object and its particle engine.

Parameters

renderlist

[IN, OUT] Render list to append to.

GetRoll()

const float CObject::GetRoll

(

)

const

Reader function for roll.

Returns

Roll.

Here is the caller graph for this function:

GetType()

const eSprite CObject::GetType

(

)

const

Reader function for the sprite type.

Returns

Sprite type.

Here is the caller graph for this function:

GetVel()

const Vector3 & CObject::GetVel

(

)

const

Reader function for velocity.

Returns

Velocity.

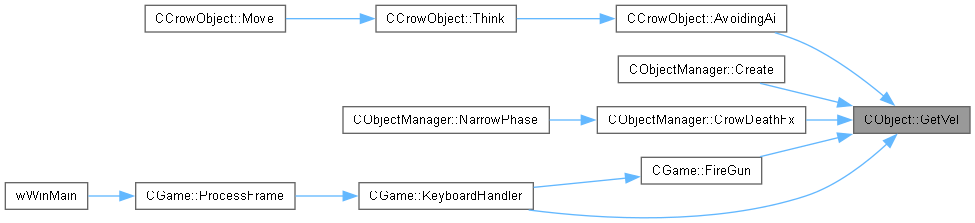

Here is the caller graph for this function:

Move()

void CObject::Move ( )

virtual

Update the position of the object and the particles in its particle engine using velocity and time. Rotate it using its roll speed and time. Change the current frame using its frame interval and time.

Reimplemented in CCrowObject, CDeadCrowObject, CHouseObject, and CPlaneObject.

Here is the call graph for this function:

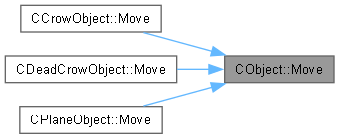

Here is the caller graph for this function:

SetLifeTime()

void CObject::SetLifeTime

(

float

t

)

Writer function for the lifetime. Objects die when this much time has elapsed since their birth time.

Parameters

t	New lifetime.

Here is the caller graph for this function:

SetRoll()

void CObject::SetRoll ( float angle )

virtual

Writer function for roll.

Parameters

angle

New roll angle in radians.

Reimplemented in CPlaneObject.

Here is the caller graph for this function:

SetRotSpeed()

void CObject::SetRotSpeed

(

float

rps

)

Writer function for roll speed.

Parameters

rps	Revolutions per second.

Here is the caller graph for this function:

SetVel()

void CObject::SetVel ( const Vector3 & v )

virtual

Writer function for the velocity.

Parameters

v	New velocity.

Reimplemented in CPlaneObject.

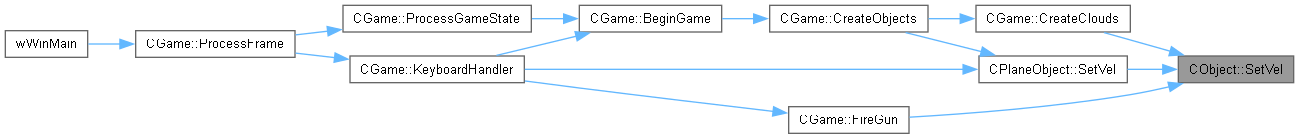

Here is the caller graph for this function:

TooOld()

bool CObject::TooOld

(

)

Died of old age.

An object is too old if the time elapsed since it was born is greater than or equal to its lifetime.

Returns

true If object has lived out its lifetime.

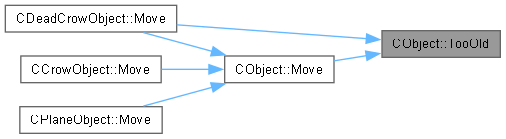

Here is the caller graph for this function:
