Point shape. More...

#include <Point.h>

Inheritance diagram for Shapes::CPoint:

[legend]

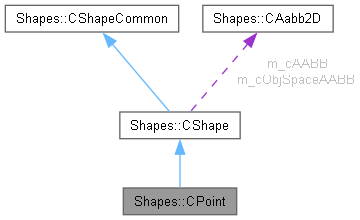

Collaboration diagram for Shapes::CPoint:

[legend]

Public Member Functions
	CPoint (const CPointDesc &)
	Constructor.

	CPoint (const Vector2 &)
	Constructor.

const bool	CollisionDetected (CContactDesc &) const
	Collision detection.

Public Member Functions inherited from Shapes::CShape
	CShape (const CShapeDesc &)
	Constructor.

virtual	~CShape ()
	Destructor.

const eShape	GetShapeType () const
	Get shape type.

const eMotion	GetMotionType () const
	Get motion type.

const CAabb2D &	GetAABB () const
	Get AABB.

const bool	GetSensor () const
	Is this shape a sensor?

const Vector2 &	GetPos () const
	Get position.

void	SetPos (const Vector2 &)
	Set position.

void	SetAABBPoint (const Vector2 &)
	Set AABB point.

void	AddAABBPoint (const Vector2 &)
	Add AABB point.

void	SetCanCollide (bool=true)
	Turn collisions on or off.

const bool	GetCanCollide () const
	Get whether shape can collide.

const bool	GetRotating () const
	Get whether rotating.

void	SetRotating (bool)
	Start or stop rotating.

const float	GetOrientation () const
	Get orientation.

void	SetOrientation (float)
	Set orientation.

const float	GetRotSpeed () const
	Get rotation speed.

void	SetRotSpeed (float)
	Set rotation speed.

const Vector2 &	GetRotCenter () const
	Get rotation speed.

void	SetRotCenter (const Vector2 &)
	Set center of rotation.

const float	GetElasticity () const
	Get elasticity.

void *	GetUserPtr () const
	Get user pointer.

void	SetUserPtr (void *)
	Set user pointer.

virtual void	Rotate (const Vector2 &, float)
	Rotate.

virtual void	Reset ()
	Reset orientation.

virtual void	move ()
	Translate.

Additional Inherited Members
Protected Attributes inherited from Shapes::CShape
eShape	m_eShapeType = eShape::Unknown
	Type of shape.

eMotion	m_eMotionType = eMotion::Static
	How shape moves.

float	m_fElasticity = 1.0f
	Elasticity, aka restitution, bounciness.

bool	m_bIsSensor = false
	Sensor only, no rebound on collision.

CAabb2D	m_cAABB
	Axially aligned bounding box in World Space.

bool	m_bCanCollide = true
	Can collide with other shapes.

float	m_fOrientation = 0.0f
	Orientation angle.

void *	m_pUser
	Spare pointer for user in case they might need one.

Vector2	m_vRotCenter
	Center of rotation.

float	m_fRotSpeed = 0.0f
	Rotation speed.

bool	m_bRotating = false
	Whether rotating.

Static Protected Attributes inherited from Shapes::CShapeCommon
static float	m_fGravity = 0.0f
	Gravitational constant.

static float	m_fTimeStep = 0.0f
	Time step per animation frame (fictional).

Detailed Description

A point has no dimensions, only position and elasticity.

Constructor & Destructor Documentation

CPoint::CPoint ( const CPointDesc & r )

Constructs a point described by a point descriptor.

Parameters

r	Point descriptor.

Here is the call graph for this function:

CPoint::CPoint ( const Vector2 & p )

Constructs a point at a given position.

Parameters

p Position.

const bool CPoint::CollisionDetected ( CContactDesc & c ) const

virtual

Collision detection with a dynamic circle.

Parameters

c	[in, out] Contact descriptor for this collision.

Reimplemented from Shapes::CShape.

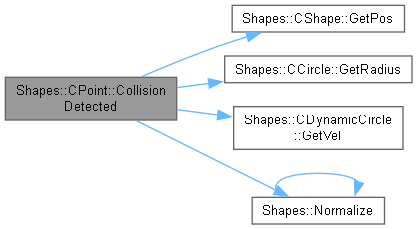

Here is the call graph for this function:

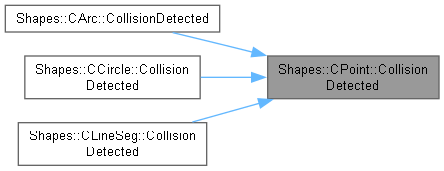

Here is the caller graph for this function:
