CGame Class Reference

The game class. More...

#include <Game.h>

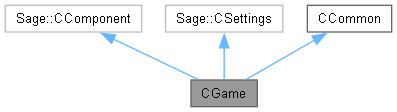

Inheritance diagram for CGame:

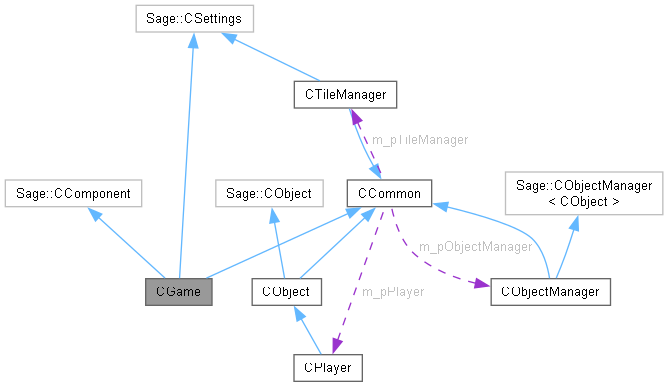

Collaboration diagram for CGame:

Public Member Functions
	~CGame ()
	Destructor.
void	Initialize ()
	Initialize the game.
void	ProcessFrame ()
	Process an animation frame.
void	Release ()
	Release the renderer.

Private Member Functions
void	LoadSprites ()
	Start loading sprites.
void	LoadSounds ()
	Load sounds.
void	BeginGame ()
	Begin playing the game.
void	KeyboardHandler ()
	The keyboard handler.
void	ControllerHandler ()
	The controller handler.
void	RenderFrame ()
	Render an animation frame.
void	DrawFrameRateText ()
	Draw frame rate text to screen.
void	DrawGodModeText ()
	Draw god mode text if in god mode.
void	CreateObjects ()
	Create game objects.
void	FollowCamera ()
	Make camera follow player character.
void	ProcessGameState ()
	Process game state.

Private Attributes
bool	m_bDrawFrameRate = false
	Draw the frame rate.
int	m_nNextLevel = 0
	Current level number.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static CTileManager *	m_pTileManager = nullptr
	Pointer to tile manager.
static CPlayer *	m_pPlayer = nullptr
	Pointer to player character.
static Vector2	m_vWorldSize
	World height and width.
static bool	m_bGodMode = false
	God mode flag.
static bool	m_bShowBounds = false
	Draw bounding boxes and circles flag.
static eGameState	m_eGameState = eGameState::Loading
	Game state.

Detailed Description

The game class is the object-oriented implementation of the game. This class must contain the following public member functions. Initialize() does initialization and will be run exactly once at the start of the game. ProcessFrame() will be called once per frame to create and render the next animation frame. Release() will be called at game exit but before any destructors are run.

Constructor & Destructor Documentation

~CGame()

CGame::~CGame

(

)

Delete the renderer, the object manager, and the tile manager. The renderer needs to be deleted before this destructor runs so it will be done elsewhere.

Member Function Documentation

BeginGame()

void CGame::BeginGame ( )

private

Call this function to start a new game. This should be re-entrant so that you can restart a new game without having to shut down and restart the program. Clear the particle engine to get rid of any existing particles, delete any old objects out of the object manager and create some new ones.

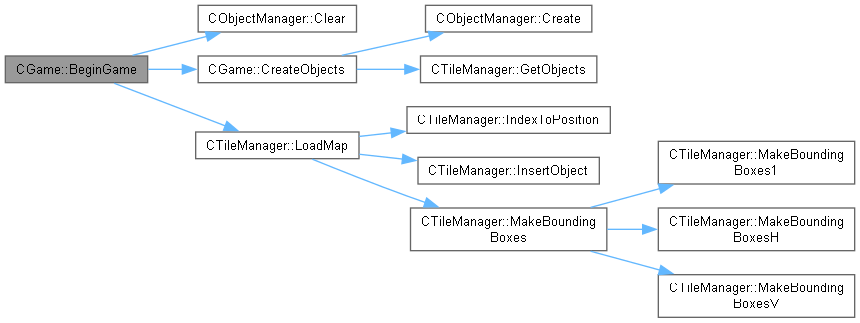

Here is the call graph for this function:

Here is the caller graph for this function:

ControllerHandler()

void CGame::ControllerHandler ( )

private

Poll the XBox controller state and respond to the controls there.

Here is the call graph for this function:

Here is the caller graph for this function:

CreateObjects()

void CGame::CreateObjects ( )

private

Ask the object manager to create the game objects.

Here is the call graph for this function:

Here is the caller graph for this function:

DrawFrameRateText()

void CGame::DrawFrameRateText ( )

private

Draw the current frame rate to a hard-coded position in the window. The frame rate will be drawn in a hard-coded position using the font specified in gamesettings.xml.

Here is the caller graph for this function:

DrawGodModeText()

void CGame::DrawGodModeText ( )

private

Draw the god mode text to a hard-coded position in the window using the font specified in gamesettings.xml.

Here is the caller graph for this function:

FollowCamera()

void CGame::FollowCamera ( )

private

Make the camera follow the player, but don't let it get too close to the edge unless the world is smaller than the window, in which case we just center everything.

Here is the call graph for this function:

Here is the caller graph for this function:

Initialize()

void CGame::Initialize

(

)

Initialize the renderer, the tile manager and the object manager, load images and sounds, and begin the game.

Here is the call graph for this function:

Here is the caller graph for this function:

KeyboardHandler()

void CGame::KeyboardHandler ( )

private

Poll the keyboard state and respond to the key presses that happened since the last frame.

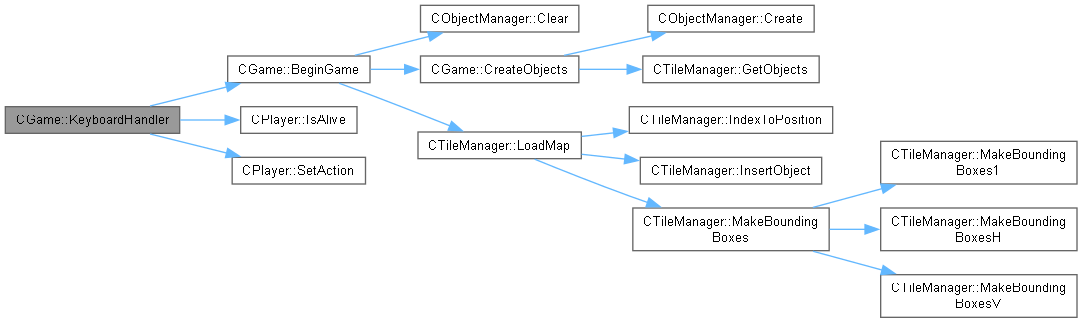

Here is the call graph for this function:

Here is the caller graph for this function:

LoadSounds()

void CGame::LoadSounds ( )

private

Load the sounds for this game.

Here is the caller graph for this function:

LoadSprites()

void CGame::LoadSprites ( )

private

Load the sprites for this game.

Here is the caller graph for this function:

ProcessFrame()

void CGame::ProcessFrame

(

)

This function will be called regularly to process and render a frame of animation, which involves the following. Handle keyboard input. Notify the audio player at the start of each frame so that it can prevent multiple copies of a sound from starting on the same frame.
Move the game objects. Render a frame of animation.

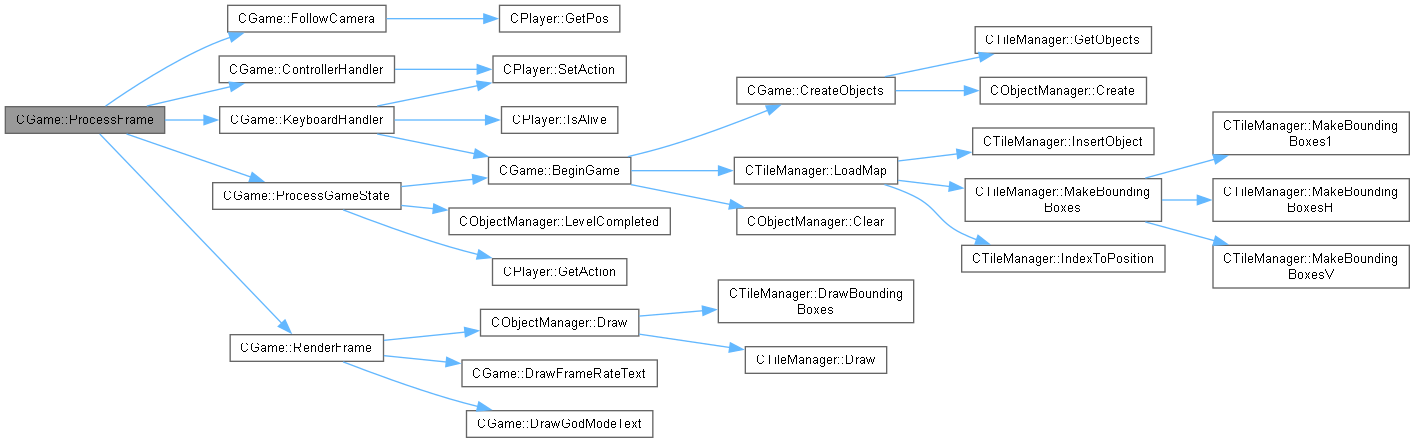

Here is the call graph for this function:

Here is the caller graph for this function:

ProcessGameState()

void CGame::ProcessGameState ( )

private

Take action appropriate to the current game state. If the game is currently playing, then if the player has been killed or all turrets have been killed, then enter the wait state. If the game has been in the wait state for longer than 4 seconds, then restart the game.

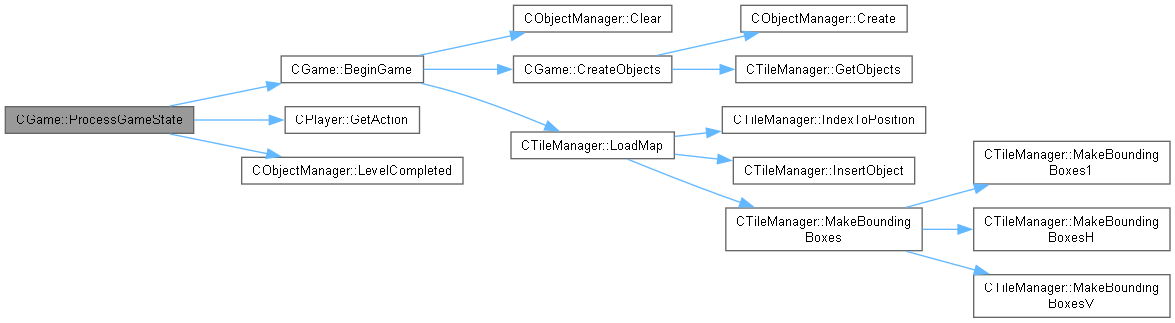

Here is the call graph for this function:

Here is the caller graph for this function:

Release()

void CGame::Release

(

)

Release all of the DirectX12 objects by deleting the renderer.

Here is the caller graph for this function:

RenderFrame()

void CGame::RenderFrame ( )

private

Ask the object manager to draw the game objects. The renderer is notified of the start and end of the frame so that it can let Direct3D do its pipelining jiggery-pokery.

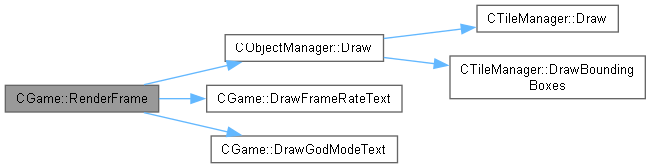

Here is the call graph for this function:

Here is the caller graph for this function:
