CDialogBox Class Reference

The dialog box class. More...

#include <DialogBox.h>

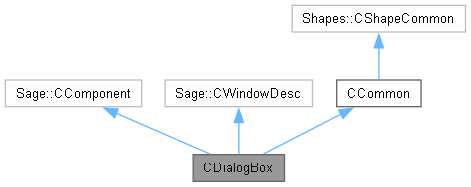

Inheritance diagram for CDialogBox:

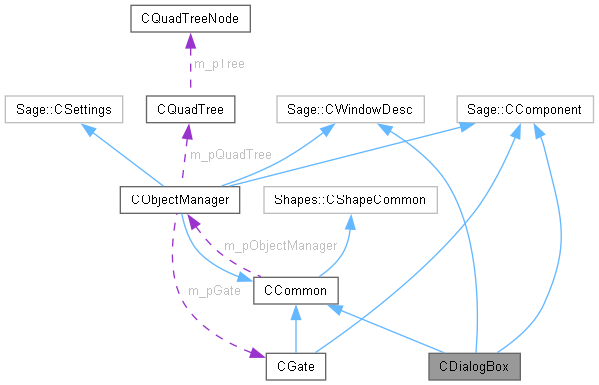

Collaboration diagram for CDialogBox:

Public Member Functions
	CDialogBox ()
	Constructor.
void	Update ()
	Update the dialog box at 1-second intervals.
void	UpdateLaunchCount ()
	Update the launch count.

Static Public Member Functions
static BOOL CALLBACK	DlgProc (HWND, UINT, WPARAM, LPARAM)
	Dialog box procedure.

Static Private Member Functions
static int	GetEditBox (int)
	Get number from an edit box.
static void	SetEditBox (int, int)
	Set an edit box.
static void	InitEditBoxes (HWND)
	Initialize edit boxes.
static void	SetCheckbox (HWND, int, bool)
	Set check box.
static void	InitCheckBoxes (HWND)
	Initialize check boxes.
static void	InitRadioButtons (HWND)
	Initialize radio buttons.
static void	InitSpinControls (HWND)
	Initialize all spin controls.
static void	InitSpinControl (HWND, int, int, int)
	Init a spin control.
static LRESULT	GetSliderValue (HWND, int, LPARAM)
	Get value from slider.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static Sage::CParticleEngine2D *	m_pFrontParticleEngine = nullptr
	Ptr to front particle engine.
static Sage::CParticleEngine2D *	m_pBackParticleEngine = nullptr
	Ptr to back particle engine.
static bool	m_bShowTrack = false
	Show trail of breadcrumbs.
static bool	m_bShowReticles = false
	Show reticle at hit point.
static bool	m_bShowImpacts = false
	Draw dots at collision points.
static bool	m_bShowArrows = false
	Draw arrows for velocity vectors.
static bool	m_bShowTangents = false
	Draw arrows for tangents.
static bool	m_bShowSectors = false
	Draw arc sentinels and normals.
static bool	m_bShowAABBs = false
	Draw shape AABBs.
static bool	m_bShowLights = false
	Light up shapes on collision.
static bool	m_bRotate = false
	Rotate kinematic shapes.
static bool	m_bLaunch = false
	Launch a ball.
static bool	m_bMute = false
	Mute the sound.
static float	m_fNextBallScale = 0.5f
	Scale factor for ball size.
static int	m_nMIterationsInit = 4
	Initial number of motion iterations.
static int	m_nCIterationsInit = 6
	Initial number of collision iterations.
static int	m_nMIterations = CCommon::m_nMIterationsInit
	Current number of motion iterations.
static int	m_nCIterations = CCommon::m_nCIterationsInit
	Current number of collision iterations.
static bool	m_bUseQuadTree = false
	Whether to use a quadtree.
static HWND	m_hDlg = nullptr
	Control dialog box handle.
static float	m_fLoad = 0.0f
	Processor load.
static float	m_fLaunchSpeed = 1000.0f
	Speed at which the next ball will be launched.
static int	m_nDesiredLaunchCnt = 1
	Number of balls to launch at next multilaunch.
static int	m_nLaunched = 0
	Number of balls launched in current multilaunch.
static bool	m_bMultiLaunch = false
	Whether launching multiple balls.
static int	m_nBallsLaunched = 0
	Number of balls in play.
static float	m_fFrequency = 60.0f*m_nMIterations
	Frequency, number of physics iterations per second.

Detailed Description

This class encapsulates all of the nasty, ugly, crufty Windows API code needed for the care and feeding of a dialog box. Don't bother to look at it unless you are really motivated to learn how it works. Unfortunately, Windows message passing needs a C-style message handler, which we have to fake in C++ by making it a static function (CDialogBox::DlgProc). That means that we have to make all of the functions it calls and member variables that they collectively access static too.

Constructor & Destructor Documentation

CDialogBox()

CDialogBox::CDialogBox

(

)

Create and initialize the dialog box.

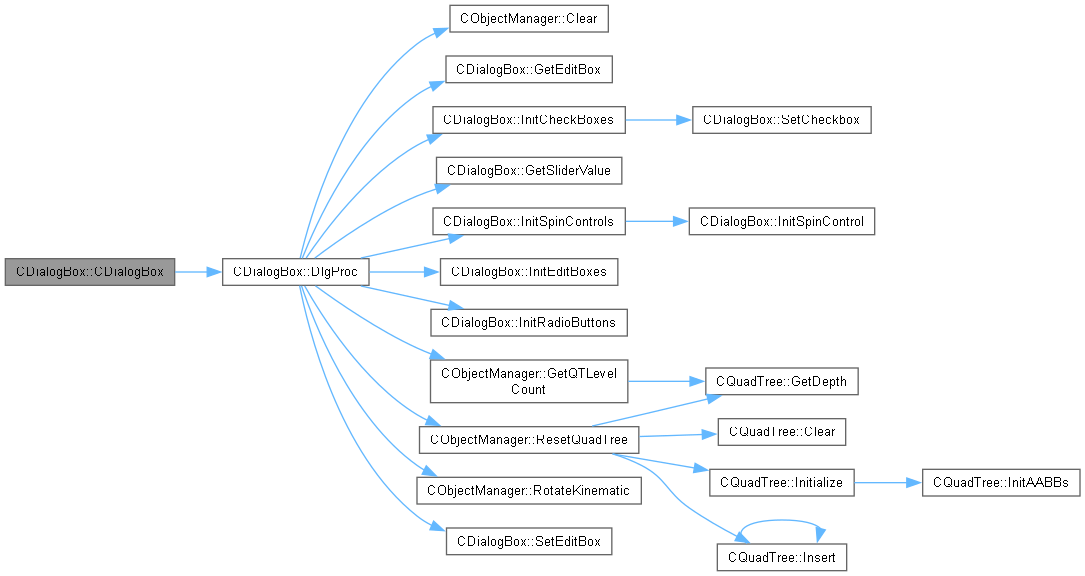

Here is the call graph for this function:

Member Function Documentation

DlgProc()

BOOL CALLBACK CDialogBox::DlgProc ( HWND hDlg, UINT iMsg, WPARAM wParam, LPARAM lParam )

static

The Dialog Procedure processes messages from the controls on the dialog box, including radio buttons, check buttons, and edit boxes. This one's a monster with over 170 lines of straight-line code.

Parameters

hDlg	Handle to the dialog box.
iMsg	WM code for the message.
wParam	Wparam.
lParam	lParam.

Returns

TRUE if the user quits.

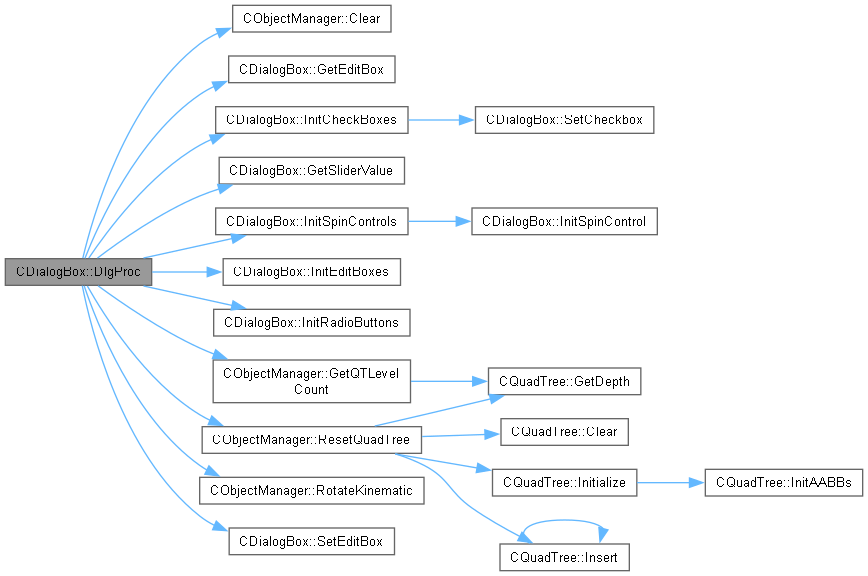

Here is the call graph for this function:

Here is the caller graph for this function:

GetEditBox()

int CDialogBox::GetEditBox ( int item )

staticprivate

Get integer value from an edit box, if something goes wrong then zero is returned, for better or for worse.

Parameters

item	Id of an edit box.

Returns

Value from that edit box, 0 if there was an error.

Here is the caller graph for this function:

GetSliderValue()

LRESULT CDialogBox::GetSliderValue ( HWND hDlg, int slider, LPARAM lParam )

staticprivate

If the LPARAM value matches the handles of a slider, then get the slider's value.

Parameters

hDlg	Handle to the dialog box.
slider	Slider index.
lParam	LPARAM value from message.

Returns

Value of slider if it matches the LPARAM, 0 otherwise.

Here is the caller graph for this function:

InitCheckBoxes()

void CDialogBox::InitCheckBoxes ( HWND hDlg )

staticprivate

Set check boxes to initial values.

Parameters

hDlg	Handle to the dialog box.

Here is the call graph for this function:

Here is the caller graph for this function:

InitEditBoxes()

void CDialogBox::InitEditBoxes ( HWND hDlg )

staticprivate

Set edit boxes to initial values.

Parameters

hDlg	Handle to the dialog box.

Here is the caller graph for this function:

InitRadioButtons()

void CDialogBox::InitRadioButtons ( HWND hDlg )

staticprivate

Set radio buttons to initial values.

Parameters

hDlg	Handle to the dialog box.

Here is the caller graph for this function:

InitSpinControl()

void CDialogBox::InitSpinControl ( HWND hDlg, int n, int lo, int hi )

staticprivate

Set the range for a spin control.

Parameters

hDlg	Handle to the dialog box.
n	Spin control.
lo	Bottom of range.
hi	Top of range.

Here is the caller graph for this function:

InitSpinControls()

void CDialogBox::InitSpinControls ( HWND hDlg )

staticprivate

Set the range of all spin controls.

Parameters

hDlg	Handle to the dialog box.

Here is the call graph for this function:

Here is the caller graph for this function:

SetCheckbox()

void CDialogBox::SetCheckbox ( HWND hDlg, int n, bool b )

staticprivate

Set the checkbox state, checked or unchecked.

Parameters

hDlg	Handle to the dialog box.
n	Check box.
b	true to check the checkbox.

Here is the caller graph for this function:

SetEditBox()

void CDialogBox::SetEditBox ( int item, int n )

staticprivate

Set an edit box to a comma-separated integer value.

Parameters

item	Id of an edit box.
n	Number to put into the edit box.

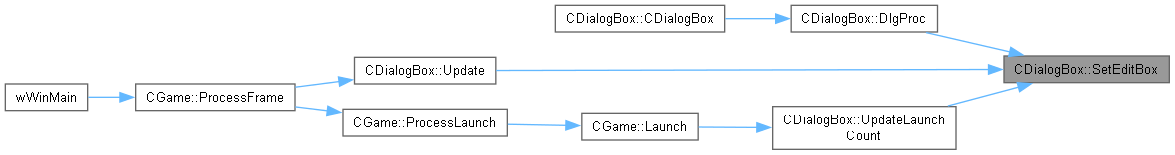

Here is the caller graph for this function:

Update()

void CDialogBox::Update

(

)

Update the edit boxes contained in the dialog box with interesting values only after a second has elapsed. Intended to be called from CGame's ProcessFrame function.

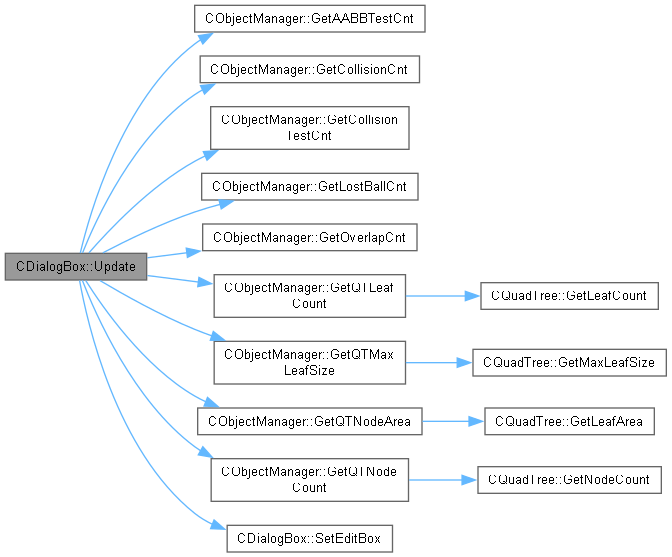

Here is the call graph for this function:

Here is the caller graph for this function:

UpdateLaunchCount()

void CDialogBox::UpdateLaunchCount

(

)

Immediately set the launch count edit box without waiting for the next update cycle.

Here is the call graph for this function:

Here is the caller graph for this function:
