CCommon Class Reference

The common variables class. More...

#include <Common.h>

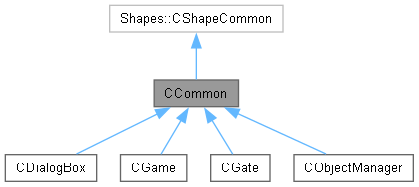

Inheritance diagram for CCommon:

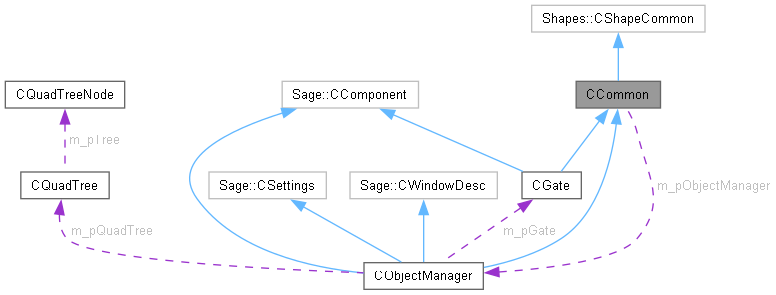

Collaboration diagram for CCommon:

Static Protected Attributes
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static Sage::CParticleEngine2D *	m_pFrontParticleEngine = nullptr
	Ptr to front particle engine.
static Sage::CParticleEngine2D *	m_pBackParticleEngine = nullptr
	Ptr to back particle engine.
static bool	m_bShowTrack = false
	Show trail of breadcrumbs.
static bool	m_bShowReticles = false
	Show reticle at hit point.
static bool	m_bShowImpacts = false
	Draw dots at collision points.
static bool	m_bShowArrows = false
	Draw arrows for velocity vectors.
static bool	m_bShowTangents = false
	Draw arrows for tangents.
static bool	m_bShowSectors = false
	Draw arc sentinels and normals.
static bool	m_bShowAABBs = false
	Draw shape AABBs.
static bool	m_bShowLights = false
	Light up shapes on collision.
static bool	m_bRotate = false
	Rotate kinematic shapes.
static bool	m_bLaunch = false
	Launch a ball.
static bool	m_bMute = false
	Mute the sound.
static float	m_fNextBallScale = 0.5f
	Scale factor for ball size.
static int	m_nMIterationsInit = 4
	Initial number of motion iterations.
static int	m_nCIterationsInit = 6
	Initial number of collision iterations.
static int	m_nMIterations = CCommon::m_nMIterationsInit
	Current number of motion iterations.
static int	m_nCIterations = CCommon::m_nCIterationsInit
	Current number of collision iterations.
static bool	m_bUseQuadTree = false
	Whether to use a quadtree.
static HWND	m_hDlg = nullptr
	Control dialog box handle.
static float	m_fLoad = 0.0f
	Processor load.
static float	m_fLaunchSpeed = 1000.0f
	Speed at which the next ball will be launched.
static int	m_nDesiredLaunchCnt = 1
	Number of balls to launch at next multilaunch.
static int	m_nLaunched = 0
	Number of balls launched in current multilaunch.
static bool	m_bMultiLaunch = false
	Whether launching multiple balls.
static int	m_nBallsLaunched = 0
	Number of balls in play.
static float	m_fFrequency = 60.0f*m_nMIterations
	Frequency, number of physics iterations per second.

Detailed Description

CCommon is a monostate class that encapsulates things that are common to different game components, including game state variables. Making it a monostate class means that we can avoid passing its member variables around as parameters, which makes the code minisculely faster, and more importantly, makes the code more readable by reducing function clutter.
