CObjectManager Class Reference

The object manager. More...

#include <ObjectManager.h>

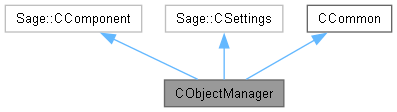

Inheritance diagram for CObjectManager:

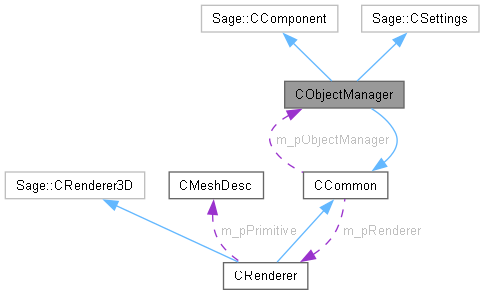

Collaboration diagram for CObjectManager:

Public Member Functions
	CObjectManager ()
	Constructor.
	~CObjectManager ()
	Destructor.
CObject *	Create (eObject, const CInstanceDesc &)
	Create an object.
void	Update ()
	Update.
void	Clear ()
	Reset to initial conditions.
void	Draw ()
	Draw all objects.

Private Member Functions
void	CullDeadObjects ()
	Cull dead objects.

Private Attributes
std::list< CObject * >	m_stdObjectList
	Object list.

Additional Inherited Members
Protected Attributes inherited from CCommon
const float	m_fFloorHt = 1.0f
	Floor height.
const Vector3	m_vPlanePos
	Plane position.
const Vector3	m_vPlaneSize
	Plane size.
const bool	m_bWireFrame = false
	Draw in wireframe.
const float	m_fMoonRadius = 25.0f
	Moon radius.
const float	m_fBallRadius = 2.0f
	Ball radius.
const Vector3	m_vBoxSize = Vector3(9.0f, 6.0f, 6.0f)
	Box size.
const float	m_fTetrahedronSize = 16.0f
	Tetrahedron size.
const float	m_fIcosahedronSize = 16.0f
	Icosahedron size.
const float	m_fDodecahedronSize = 16.0f
	Dodecahedron size.
const float	m_fTeapotSize = 8.0f
	Teapot size.
Static Protected Attributes inherited from CCommon
static CRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static Sage::CCamera *	m_pCamera = nullptr
	Pointer to the camera.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static btDiscreteDynamicsWorld *	m_pPhysicsWorld = nullptr
	Pointer to physics engine.
static btDefaultCollisionConfiguration *	m_pConfig = nullptr
	Bullet physics configuration.
static btCollisionDispatcher *	m_pDispatcher = nullptr
	Bullet physics dispatcher.
static btBroadphaseInterface *	m_pBroadphase = nullptr
	Bullet physics broadphase.
static btSequentialImpulseConstraintSolver *	m_pSolver = nullptr
	Bullet physics constraint solver.
static btAlignedObjectArray< btCollisionShape * >	m_btCollisionShapes
	Collision shapes.
static bool	m_bCollisionSoundsMuted = false
	Mute collision sounds.

Detailed Description

A collection of all of the game objects.

Constructor & Destructor Documentation

CObjectManager()

CObjectManager::CObjectManager

(

)

Default constructor.

~CObjectManager()

CObjectManager::~CObjectManager

(

)

Destruct all of the objects in the object list.

Member Function Documentation

Clear()

void CObjectManager::Clear

(

)

Delete all of the objects managed by the object manager. This involves deleting all of the CObject instances pointed to by the object list, then clearing the object list.

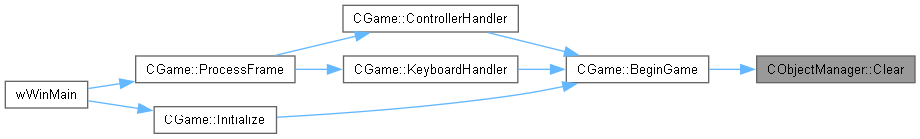

Here is the caller graph for this function:

Create()

CObject * CObjectManager::Create	(	eObject	obj,
		const CInstanceDesc &	d )

Create an object instance and insert it into the object list.

Parameters

obj	Object type.
d	Mesh descriptor.

Returns

Pointer to the object created.

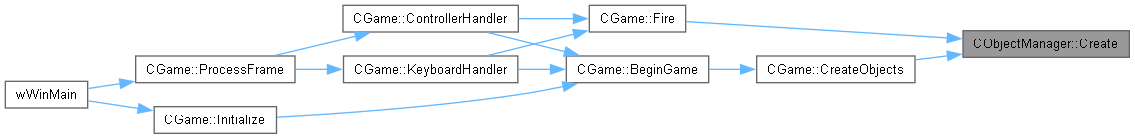

Here is the caller graph for this function:

CullDeadObjects()

void CObjectManager::CullDeadObjects ( )

private

Iterate through the objects and check whether their "is dead" flag has been set. If so, then delete its pointer from the object list and destruct the object.

Here is the caller graph for this function:

Draw()

void CObjectManager::Draw

(

)

Draw all objects in the object list.

Here is the call graph for this function:

Here is the caller graph for this function:

Update()

void CObjectManager::Update

(

)

Update all objects in the object list. This function has two tasks, playing collision sounds and deleting delete all objects that have fallen off the plane and dropped far enough.

Here is the call graph for this function:

Here is the caller graph for this function:
