CObject Class Reference

The game object. More...

#include <Object.h>

Inheritance diagram for CObject:

Collaboration diagram for CObject:

Public Member Functions
	CObject (const eObject, const CInstanceDesc &)
	Constructor.
	~CObject ()
	Destructor.
void	ApplyImpulse (const Vector3 &, const Vector3 &)
	Apply impulse.
void	AddContact (CObject *, const CContactDesc &)
	Add a contact.
void	PlayCollisionSounds ()
	Play collision sounds.
const eObject	GetObjectType () const
const Vector3	GetPosition () const
	Get object type.
const Quaternion	GetOrientation () const
	Get orientation.

Private Member Functions
btConvexHullShape *	ComputeConvexHull ()
	Compute convex hull.
const bool	ContactType (CObject *, eObject, eObject) const
	Contact type test.
const bool	ContactType (CObject *, eObject) const
	Contact type test.

Private Attributes
eObject	m_eObjectType = eObject::Unknown
	Object type.
eMesh	m_eMeshType = eMesh::Unknown
	Mesh type.
eModel	m_eModelType = eModel::Unknown
	Model type.
float	m_fScale = 1.0f
	Scale (used for models).
UINT	m_nShapeIndex = 0
	Shape index.
UINT	m_nEffectIndex = 0
	Effect index.
Quaternion	m_qOrientation
	Initial orientation.
btRigidBody *	m_pBody = nullptr
	Pointer to physics body.
std::map< CObject *, CContactDesc >	m_mapContact [2]
	Contact lists.
UINT	m_nContactIndex = 0
	Contact index.

Friends
class	CRenderer

Additional Inherited Members
Protected Attributes inherited from CCommon
const float	m_fFloorHt = 1.0f
	Floor height.
const Vector3	m_vPlanePos
	Plane position.
const Vector3	m_vPlaneSize
	Plane size.
const bool	m_bWireFrame = false
	Draw in wireframe.
const float	m_fMoonRadius = 25.0f
	Moon radius.
const float	m_fBallRadius = 2.0f
	Ball radius.
const Vector3	m_vBoxSize = Vector3(9.0f, 6.0f, 6.0f)
	Box size.
const float	m_fTetrahedronSize = 16.0f
	Tetrahedron size.
const float	m_fIcosahedronSize = 16.0f
	Icosahedron size.
const float	m_fDodecahedronSize = 16.0f
	Dodecahedron size.
const float	m_fTeapotSize = 8.0f
	Teapot size.
Static Protected Attributes inherited from CCommon
static CRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static Sage::CCamera *	m_pCamera = nullptr
	Pointer to the camera.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static btDiscreteDynamicsWorld *	m_pPhysicsWorld = nullptr
	Pointer to physics engine.
static btDefaultCollisionConfiguration *	m_pConfig = nullptr
	Bullet physics configuration.
static btCollisionDispatcher *	m_pDispatcher = nullptr
	Bullet physics dispatcher.
static btBroadphaseInterface *	m_pBroadphase = nullptr
	Bullet physics broadphase.
static btSequentialImpulseConstraintSolver *	m_pSolver = nullptr
	Bullet physics constraint solver.
static btAlignedObjectArray< btCollisionShape * >	m_btCollisionShapes
	Collision shapes.
static bool	m_bCollisionSoundsMuted = false
	Mute collision sounds.

Detailed Description

CObject is the abstract representation of an object.

Constructor & Destructor Documentation

CObject()

CObject::CObject	(	const eObject	t,
		const CInstanceDesc &	d )

Make an instance of a geometric primitive or triangle mesh model object with a shape for collision detection and response. Add a rigid body to the physics world with user pointer pointing to this so that we can later map collisions between physics bodies to the corresponding objects.

Parameters

t	Object type.
d	Instance descriptor.

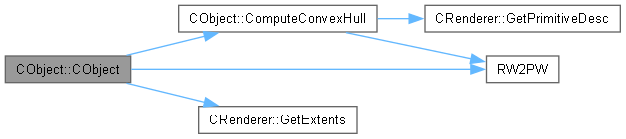

Here is the call graph for this function:

~CObject()

CObject::~CObject

(

)

Destructor. This is mainly just cleaning up after Bullet Physics by deleting the physics body, motion state, and collision object.

Member Function Documentation

AddContact()

void CObject::AddContact	(	CObject *	pObj,
		const CContactDesc &	d )

Add a contact to the current contact map. This function is called by a callback function myTickCallback(), which is called from Bullet Physics whenever a contact between two bodies is detected.

Parameters

pObj	Pointer to object in contact.
d	Contact descriptor for the contact.

Here is the caller graph for this function:

ApplyImpulse()

void CObject::ApplyImpulse	(	const Vector3 &	force,
		const Vector3 &	pos )

Apply an impulse through a point.

Parameters

force	Direction and magnitude of impulse.
pos	Point through which the impulse is applied.

Here is the call graph for this function:

Here is the caller graph for this function:

ComputeConvexHull()

btConvexHullShape * CObject::ComputeConvexHull ( )

private

Compute the convex hull for a primitive of type m_eMeshType. A convex hull is a triangle mesh that fits closely to the original mesh but is convex. Bullet Physics has the ability to compute a convex hull from the vertices of a mesh and use it as a collision shape. Append a pointer to it to m_btCollisionShapes.

Returns

Pointer to the convex hull created.

Here is the call graph for this function:

Here is the caller graph for this function:

ContactType() [1/2]

const bool CObject::ContactType ( CObject * p, eObject t ) const

private

Determine whether this object and another object have the right types, ignoring the order of the type parameters.

Parameters

p	Pointer to an object.
t	Object type.

Returns

true if this object or *p has types t.

Here is the call graph for this function:

ContactType() [2/2]

const bool CObject::ContactType ( CObject * p, eObject t0, eObject t1 ) const

private

Determine whether this object and another object have the right types, ignoring the order of the type parameters.

Parameters

p	Pointer to an object.
t0	First object type.
t1	Second object type.

Returns

true if this object and *p have types t0 and t1 in any order.

Here is the call graph for this function:

Here is the caller graph for this function:

GetObjectType()

const eObject CObject::GetObjectType

(

)

const

Reader function for the object type.

Returns

Object type.

Here is the caller graph for this function:

GetOrientation()

const Quaternion CObject::GetOrientation

(

)

const

Get the object orientation. If it has a physics body, then get it from the physics engine, otherwise from m_qOrientation.

Returns

The object orientation quaternion.

Here is the call graph for this function:

Here is the caller graph for this function:

GetPosition()

const Vector3 CObject::GetPosition

(

)

const

Get position.

Get the position of the object center. If it has a physics body, then get it from the physics engine, otherwise return the zero vector.

Returns

The position of the object center.

Here is the call graph for this function:

Here is the caller graph for this function:

PlayCollisionSounds()

void CObject::PlayCollisionSounds

(

)

Play collision sounds, which are managed as follows. There are two contact maps, m_mapContact[0] and m_mapContact[1], which map a pointer to the object that this object is in contact with to a contact descriptor for the contact. The current contact map is m_mapContact[m_nContactIndex], where m_nContactIndex flips from zero to one each time this function is called. The other contact map m_mapContact[m_nContactIndex^1] is the contact map from the previous frame. Entries are place in the current contact map by a callback function myTickCallback() calling function AddContact() above. This function is then called at the end of the frame to play the appropriate sound when either (1) there is an entry in the current contact map for an object that does not have an entry in the previous contact map, or, (2) the entry for an object in the current contact map has more points of contact than the one in the previous contact map.

Here is the call graph for this function:
