Renderable comparator network. More...

#include <RenderableComparatorNet.h>

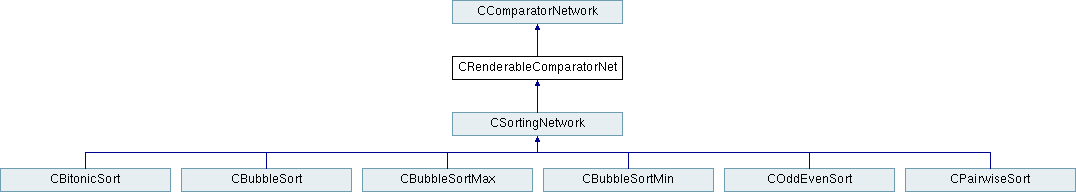

Inheritance diagram for CRenderableComparatorNet:

Public Member Functions
	~CRenderableComparatorNet ()
	Destructor. More...

void	Draw (const eDrawStyle)
	Draw to a `Gdiplus::Bitmap`. More...

HRESULT	ExportToPNG (LPWSTR)
	Export in PNG format. More...

HRESULT	ExportToTex (LPWSTR)
	Export in TeX format. More...

HRESULT	ExportToSVG (LPWSTR)
	Export in SVG format. More...

Gdiplus::Bitmap *	GetBitmap ()
	Get bitmap pointer. More...

Public Member Functions inherited from CComparatorNetwork
	~CComparatorNetwork ()
	Destructor. More...

virtual bool	Read (LPWSTR)
	Read from file. More...

void	Prune (const UINT)
	Prune down number of inputs. More...

const UINT	GetNumInputs () const
	Get number of inputs. More...

const UINT	GetDepth () const
	Get depth. More...

const UINT	GetSize () const
	Get size. More...

const bool	FirstNormalForm () const
	Test for first normal form. More...

Protected Member Functions
Gdiplus::REAL	ComputeBitmapHeight ()
	Compute bitmap height. More...

void	DrawChannels (const float fLen)
	Draw channels. More...

void	DrawComparator (const UINT, const UINT, const float, bool=false)
	Draw a comparator. More...

void	DrawComparators ()
	Draw all comparators. More...

Protected Member Functions inherited from CComparatorNetwork
void	InsertComparator (UINT, UINT, UINT)
	Insert comparator. More...

void	CreateMatchArray (UINT, UINT)
	Create match array. More...

void	ComputeSize ()
	Compute size. More...

Protected Attributes
const Gdiplus::REAL	m_fPenWidth = 2.0f
	Pen width in pixels. More...

const Gdiplus::REAL	m_fXDelta = 24.0f
	Gap between channels in pixels. More...

const Gdiplus::REAL	m_fYDelta = 16.0f
	Vertical comparator gap in pixels. More...

const Gdiplus::REAL	m_fYDelta2 = 8.0f
	Extra vertical gap between layers in pixels. More...

const Gdiplus::REAL	m_fDiameter = 8.0f
	Diameter of circles in pixels. More...

Gdiplus::Bitmap *	m_pBitmap = nullptr
	Pointer to a bitmap image. More...

eDrawStyle	m_eDrawStyle = eDrawStyle::Horizontal
	Drawing style. More...

Gdiplus::Graphics *	m_pGraphics = nullptr
	Pointer to graphics object. More...

Gdiplus::Pen *	m_pPen = nullptr
	Pointer to graphics pen. More...

Gdiplus::Pen *	m_pRedPen = nullptr
	Pointer to graphics pen. More...

Gdiplus::SolidBrush *	m_pBrush = nullptr
	Pointer to graphics brush. More...

Gdiplus::SolidBrush *	m_pRedBrush = nullptr
	Pointer to graphics brush. More...

FILE *	m_pOutput = nullptr
	File pointer. More...

eExport	m_eExportType = eExport::Png
	Export type. More...

Protected Attributes inherited from CComparatorNetwork
UINT **	m_nMatch = nullptr
	Matchings at each level. More...

bool **	m_bUsed = nullptr
	Whether comparators are used when sorting. More...

UINT	m_nInputs = 0
	Number of inputs. More...

UINT	m_nDepth = 0
	Depth. More...

UINT	m_nSize = 0
	Size. More...

bool	m_bSorts = false
	True if it sorts, false if it doesn't or unknown. More...

Detailed Description

A comparator network that can be rendered to a Gdiplus::Bitmap or exported in one of several graphics file formats. Uses GDI+, obviously.

Definition at line 37 of file RenderableComparatorNet.h.

Constructor & Destructor Documentation

◆ ~CRenderableComparatorNet()

CRenderableComparatorNet::~CRenderableComparatorNet ( )

< Delete the bitmap.

Definition at line 33 of file RenderableComparatorNet.cpp.

Member Function Documentation

◆ ComputeBitmapHeight()

Gdiplus::REAL CRenderableComparatorNet::ComputeBitmapHeight ( )

protected

Compute the bitmap height when drawn in vertical draw mode. Note that this does not actually draw the comparator network to a bitmap, but it goes through the motions and tallies up the height that would be used.

Returns: Bitmap height in pixels.

Definition at line 42 of file RenderableComparatorNet.cpp.

◆ Draw()

void CRenderableComparatorNet::Draw ( const eDrawStyle d )

Draw the comparator network in black with a transparent background to a new Gdiplus::Bitmap of the right size. The comparator network is drawn either vertically or horzontally depending on the draw mode m_eDrawStyle. The calling function is responsible for deleting the bitmap when it is no longer needed. Note that m_eExportType is set to eExport::Png so that the calls to DrawComparators() and DrawChannels()draw to the bitmap pointed to bym_pBitmap`.

Parameters

d	Draw style.

Definition at line 297 of file RenderableComparatorNet.cpp.

◆ DrawChannels()

void CRenderableComparatorNet::DrawChannels ( const float fLen )

protected

Draw channels. The behaviour of this function depends on the value of m_eExportType. If it is m_eExportType::Png, then we draw the channels to the bitmap pointed to by m_pBitmap via the graphics object pointed to by m_pGraphics. Otherwise we output the vector graphics commands to draw the channels (a line for each channel) to the file pointed to by m_pOutput.

Parameters

fLen	Length of channels in pixels.

Definition at line 234 of file RenderableComparatorNet.cpp.

◆ DrawComparator()

void CRenderableComparatorNet::DrawComparator	(	const UINT	src,
		const UINT	dest,
		const float	fDist,
		bool	bRed = `false`
	)

protected

Draw a comparator. The behaviour of this function depends on the value of m_eExportType. If it is m_eExportType::Png, then we draw the comparator to the bitmap pointed to by m_pBitmap via the graphics object pointed to by m_pGraphics. Otherwise we output the vector graphics commands to draw the comparator (a line and two filled circles) to the file pointed to by m_pOutput.

Parameters

src	Source (min) channel.
dest	Destination (max) channel.
fDist	Distance along channel to comparator in pixels.
bRed	True if comparator is to be drawn red (PNG only).

Definition at line 85 of file RenderableComparatorNet.cpp.

◆ DrawComparators()

void CRenderableComparatorNet::DrawComparators ( )

protected

Draw all comparators. Calls DrawComparator() once for each comparator. The behaviour of this function depends on the value of m_eExportType. If it is m_eExportType::Png, then we draw the comparators to the bitmap pointed to by m_pBitmap via the graphics object pointed to by m_pGraphics. Otherwise we output the vector graphics commands to draw the comparators (lines and filled circles) to the file pointed to by m_pOutput.

Definition at line 176 of file RenderableComparatorNet.cpp.

◆ ExportToPNG()

HRESULT CRenderableComparatorNet::ExportToPNG ( LPWSTR lpwstr )

Export to an PNG file. This simply involves using GDI+ to save the bitmap pointed to by m_pBitmap to a file.

Parameters

lpwstr Null terminated wide file name.

Returns: S_OK if export succeeded, otherwise E_FAIL.

Definition at line 334 of file RenderableComparatorNet.cpp.

◆ ExportToSVG()

HRESULT CRenderableComparatorNet::ExportToSVG ( LPWSTR lpwstr )

Export to an SVG file. Note that m_eExportType is set to eExport::Svg so that the calls to DrawComparators() and DrawChannels()` output the necessary vector graphics commands in SVG format to the file pointed to by m_pOutput.

Parameters

lpwstr Null terminated wide file name.

Returns: S_OK if export succeeded, otherwise E_FAIL.

Definition at line 403 of file RenderableComparatorNet.cpp.

◆ ExportToTex()

HRESULT CRenderableComparatorNet::ExportToTex ( LPWSTR lpwstr )

Export to a TeX file. Note that m_eExportType is set to eExport::TeX so that the calls to DrawComparators() and DrawChannels()` output the necessary vector graphics commands in TeX format to the file pointed to by m_pOutput.

Parameters

lpwstr Null terminated wide file name.

Returns: S_OK if export succeeded, otherwise E_FAIL.

Definition at line 354 of file RenderableComparatorNet.cpp.

◆ GetBitmap()

Gdiplus::Bitmap * CRenderableComparatorNet::GetBitmap ( )

Reader function for bitmap pointer.

Returns: Pointer to bitmap.

Definition at line 460 of file RenderableComparatorNet.cpp.

Member Data Documentation

◆ m_eDrawStyle

eDrawStyle CRenderableComparatorNet::m_eDrawStyle = eDrawStyle::Horizontal

protected

Definition at line 47 of file RenderableComparatorNet.h.

◆ m_eExportType

eExport CRenderableComparatorNet::m_eExportType = eExport::Png

protected

Definition at line 56 of file RenderableComparatorNet.h.

◆ m_fDiameter

const Gdiplus::REAL CRenderableComparatorNet::m_fDiameter = 8.0f

protected

Definition at line 43 of file RenderableComparatorNet.h.

◆ m_fPenWidth

const Gdiplus::REAL CRenderableComparatorNet::m_fPenWidth = 2.0f

protected

Definition at line 39 of file RenderableComparatorNet.h.

◆ m_fXDelta

const Gdiplus::REAL CRenderableComparatorNet::m_fXDelta = 24.0f

protected

Definition at line 40 of file RenderableComparatorNet.h.

◆ m_fYDelta

const Gdiplus::REAL CRenderableComparatorNet::m_fYDelta = 16.0f

protected

Definition at line 41 of file RenderableComparatorNet.h.

◆ m_fYDelta2

const Gdiplus::REAL CRenderableComparatorNet::m_fYDelta2 = 8.0f

protected

Definition at line 42 of file RenderableComparatorNet.h.

◆ m_pBitmap

Gdiplus::Bitmap* CRenderableComparatorNet::m_pBitmap = nullptr

protected

Definition at line 45 of file RenderableComparatorNet.h.

◆ m_pBrush

Gdiplus::SolidBrush* CRenderableComparatorNet::m_pBrush = nullptr

protected

Definition at line 52 of file RenderableComparatorNet.h.

◆ m_pGraphics

Gdiplus::Graphics* CRenderableComparatorNet::m_pGraphics = nullptr

protected

Definition at line 49 of file RenderableComparatorNet.h.

◆ m_pOutput

FILE* CRenderableComparatorNet::m_pOutput = nullptr

protected

Definition at line 55 of file RenderableComparatorNet.h.

◆ m_pPen

Gdiplus::Pen* CRenderableComparatorNet::m_pPen = nullptr

protected

Definition at line 50 of file RenderableComparatorNet.h.

◆ m_pRedBrush

Gdiplus::SolidBrush* CRenderableComparatorNet::m_pRedBrush = nullptr

protected

Definition at line 53 of file RenderableComparatorNet.h.

◆ m_pRedPen

Gdiplus::Pen* CRenderableComparatorNet::m_pRedPen = nullptr

protected

Definition at line 51 of file RenderableComparatorNet.h.
