Shapes::CCircleDesc Class Reference

Circle descriptor. More...

#include <Circle.h>

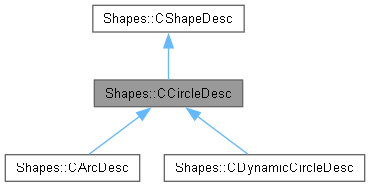

Inheritance diagram for Shapes::CCircleDesc:

Collaboration diagram for Shapes::CCircleDesc:

Public Member Functions
	CCircleDesc ()
	Constructor.
	CCircleDesc (const Vector2 &, float, float=1.0f)
	Constructor.
Public Member Functions inherited from Shapes::CShapeDesc
	CShapeDesc (eShape)
	Constructor.
	CShapeDesc ()
	Default constructor.

Public Attributes
float	m_fRadius = 0.0f
	Radius.
Public Attributes inherited from Shapes::CShapeDesc
eShape	m_eShapeType = eShape::Unknown
	Type of shape.
Vector2	m_vPos
	Position.
float	m_fElasticity = 1.0f
	Elasticity, aka restitution, bounciness.
eMotion	m_eMotionType = eMotion::Static
	How shape moves.
bool	m_bIsSensor = false
	Sensor only, no rebound.

Detailed Description

The circle descriptor describes a circle shape.

Constructor & Destructor Documentation

CCircleDesc() [1/2]

CCircleDesc::CCircleDesc

(

)

The default contructor creates a circle descriptor of zero radius.

CCircleDesc() [2/2]

CCircleDesc::CCircleDesc	(	const Vector2 &	p,
		float	r,
		float	e = 1.0f )

This constructor creates a circle descriptor given the circle's center, radius, and elasticity.

Parameters

p	Center point.
r	Radius.
e	Elasticity.
