CObject Class Reference

The game object. More...

#include <Object.h>

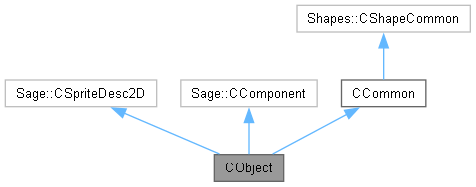

Inheritance diagram for CObject:

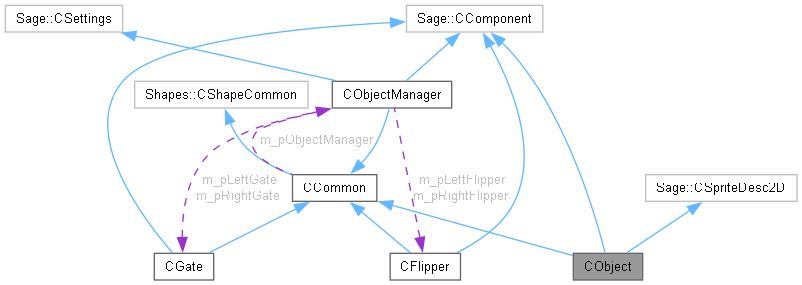

Collaboration diagram for CObject:

Public Member Functions
	CObject (Shapes::CShape *, const CObjDesc &)
	Constructor.
void	Update ()
	Update object.
void	DrawOutline ()
	Draw outline.
const Shapes::CAabb2D &	GetAABB () const
	Get AABB.
Shapes::CShape *	GetShape () const
	Get pointer to shape.
const Shapes::eMotion	GetMotionType () const
	Get motion type.

Private Attributes
eSprite	m_eUnlitSprite = eSprite::None
	Unlit sprite.
eSprite	m_eLitSprite = eSprite::None
	Unlit sprite.
Vector2	m_vSpriteOffset
	Sprite offset in local coordinates.
eSound	m_eSound = eSound::None
	Collision sound.
Shapes::CShape *	m_pShape = nullptr
	Pointer to shape.
bool	m_bRecentHit = false
	Was hit recently.
float	m_fLastHitTime = 0.0f
	Time of last hit.
UINT	m_nScore = 0
	Score for collision.

Friends
class	CObjectManager

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static UINT	m_nMIterations = 4
	Number of motion iterations.
static UINT	m_nCIterations = 1
	Number of collision iterations.
static float	m_fFrequency = 60.0f*m_nMIterations
	Frequency, number of physics iterations per second.
static eDrawMode	m_eDrawMode = eDrawMode::Background
	Draw mode.
static bool	m_bBallInPlay = false
	Is there a ball currently in play?
static UINT	m_nScore = 0
	Current score.

Detailed Description

CObject is the abstract representation of an object. Notice that CObject has no move or draw functions. Moving and drawing is now handled by CShape.

Constructor & Destructor Documentation

CObject()

CObject::CObject	(	Shapes::CShape *	p,
		const CObjDesc &	d )

Constructor.

Parameters

p	Pointer to a shape.
d	Pointer to an object descriptor.

Member Function Documentation

DrawOutline()

void CObject::DrawOutline

(

)

Draw only the outline of the object's shape. This is reasonably cheap for line segments but hideously expensive for circles and arcs because it laboriously constructs the curve by drawing very short lines. Ideally I should put it into a pixel shader but I can't be bothered. This is good enough for now.

GetAABB()

const Shapes::CAabb2D & CObject::GetAABB

(

)

const

Reader function for the object's AABB. It gets this by querying the object's shape's AABB.

Returns

The object's AABB.

GetMotionType()

const Shapes::eMotion CObject::GetMotionType

(

)

const

Reader function for the object's motion type. It gets this by querying the object's shape's motion type.

Returns

The object's motion type.

GetShape()

Shapes::CShape * CObject::GetShape

(

)

const

Reader function for the object's shape.

Returns

A pointer to the object's shape.

Update()

void CObject::Update

(

)

Update object setting from its shape.
