CObjectManager Class Reference

The object manager. More...

#include <ObjectManager.h>

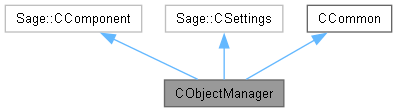

Inheritance diagram for CObjectManager:

Collaboration diagram for CObjectManager:

Public Member Functions
	CObjectManager ()
	Constructor.
	~CObjectManager ()
	Destructor.
void	CreateObject (eSprite, b2Body *)
	Create new object.
void	CreateTower ()
	Create a tower of crates.
void	CreateBackground (eSprite)
	Create background.
void	clear ()
	Reset to initial conditions.
void	Draw ()
	Draw all objects.
void	MakeCollisionSounds ()
	Make sounds for all objects.
void	EmitSmoke (const Vector2 &, Vector2)
	Emit a smoke particle.
const bool	AllCratesBelow (float) const
	Test all crates below height.

Private Member Functions
void	CreateCrate (float, float, const b2FixtureDef &)
	Create a crate.

Private Attributes
Sage::CParticleDesc2D	m_cSmokeDesc
	Particle descriptor for smoke particle.
std::vector< CObject * >	m_stdList
	Object list.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static b2World *	m_pPhysicsWorld = nullptr
	Pointer to Box2D Physics World.
static CBox2DRenderer *	m_pRenderer = nullptr
	Pointer to Render World.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to object manager.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static eDrawMode	m_eDrawMode = eDrawMode::Sprites
	Draw mode.
static bool	m_bEasterEgg = false
	Easter egg!

Detailed Description

The object manager is an abstract representation of all of the objects in the game.

Constructor & Destructor Documentation

~CObjectManager()

CObjectManager::~CObjectManager

(

)

The destructor clears the object list, which destructs all of the objects in it.

Here is the call graph for this function:

Member Function Documentation

AllCratesBelow()

const bool CObjectManager::AllCratesBelow

(

float

h

)

const

Parameters

h	Height in Render World units.

Returns

true if all crates have y-coordinate less than h.

Here is the caller graph for this function:

clear()

void CObjectManager::clear

(

)

Delete all of the entities managed by the object manager. This involves deleting all of the CObject instances pointed to by the object list, then clearing the object list itself.

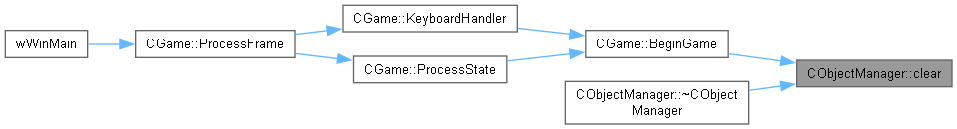

Here is the caller graph for this function:

CreateBackground()

void CObjectManager::CreateBackground

(

eSprite

t

)

Create world edges in Physics World. Place Box2D edge shapes in the Physics World in places that correspond to the bottom, right, and left edges of the screen in Render World. The left and right edges continue upwards for a distance. There is no top to the world.

Parameters

t	Sprite type.

Here is the call graph for this function:

Here is the caller graph for this function:

CreateCrate()

void CObjectManager::CreateCrate ( float x, float y, const b2FixtureDef & fd )

private

Create a crate in Physics World and Object World.

Parameters

x	Horizontal coordinate in Physics World units.
y	Vertical coordinate in Physics World units.
fd	Crate fixture definition.

Here is the call graph for this function:

Here is the caller graph for this function:

CreateObject()

void CObjectManager::CreateObject	(	eSprite	t,
		b2Body *	p )

Create an object in the object manager.

Parameters

t	Sprite type.
p	Pointer to Physics World body.

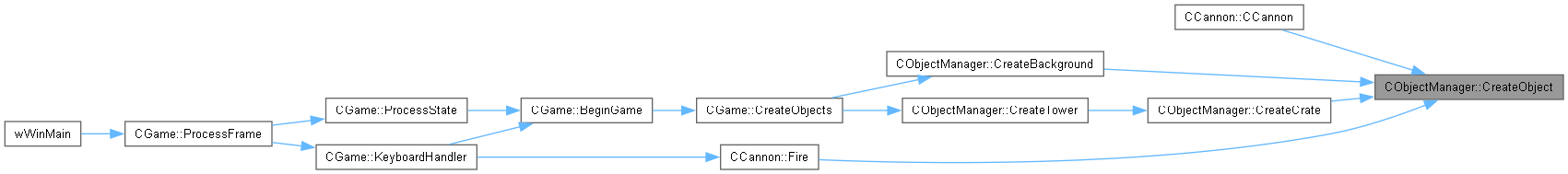

Here is the caller graph for this function:

CreateTower()

void CObjectManager::CreateTower

(

)

Create a tower of crates at a hard-coded location.

Here is the call graph for this function:

Here is the caller graph for this function:

EmitSmoke()

void CObjectManager::EmitSmoke	(	const Vector2 &	p,
		Vector2	v )

Create a smoke particle using the front particle engine so that it appears in front of the cannon. This particle will scale in and fade out over its lifespan, which is hard-coded. Friction is added to make it slow down horizontally, and upward acceleration is added to make it appear to rise due to the high temperature of an expolosion.

Parameters

p	Initial position.
v	Initial velocity.

Here is the caller graph for this function:

MakeCollisionSounds()

void CObjectManager::MakeCollisionSounds

(

)

Make collision sounds for all objects.

Here is the caller graph for this function:
