CObject Class Reference

The game object. More...

#include <Object.h>

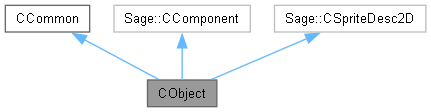

Inheritance diagram for CObject:

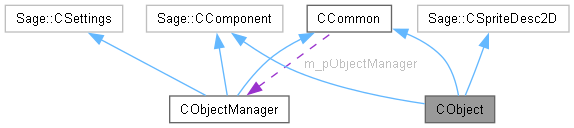

Collaboration diagram for CObject:

Public Member Functions
	CObject (eSprite, b2Body *)
	Constructor.
	~CObject ()
	Destructor.
void	Update ()
	Update from Physics Engine.
void	Draw ()
	Draw object.
const eSprite	GetSpriteType () const
	Get sprite type.
const Vector2	GetPos () const
	Get position in renderer coordinates.
const float	GetSpeed () const
	Get speed in renderer units.

Private Attributes
b2Body *	m_pBody = nullptr
	Physics World body.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static CBox2DRenderer *	m_pRenderer = nullptr
	Pointer to the Renderer.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static b2World *	m_pPhysicsWorld = nullptr
	Pointer to Box2D Physics World.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the Object Manager.
static eDrawMode	m_eDrawMode = eDrawMode::Sprites
	Draw mode.

Detailed Description

Game objects are responsible for remembering information about themselves, in particular, their representations in the Renderer and Physics World.

Constructor & Destructor Documentation

CObject()

CObject::CObject	(	eSprite	t,
		b2Body *	b )

This constructor assumes that a Physics World body has already been created for this object. It then has responsibility for deleting it in its destructor.

Parameters

t	Sprite type.
b	Pointer to Physics World body.

~CObject()

CObject::~CObject

(

)

This destructor assumes that Box2D hasn't been shut down yet.

Member Function Documentation

Draw()

void CObject::Draw

(

)

Draw the object using its position and orientation in Physics World.

Here is the call graph for this function:

Here is the caller graph for this function:

GetPos()

const Vector2 CObject::GetPos

(

)

const

Reader function for position in Render World.

Returns

Position in Render World coordinates.

Here is the call graph for this function:

GetSpeed()

const float CObject::GetSpeed

(

)

const

Reader function for speed in Render World.

Returns

Speed in Render World units.

Here is the call graph for this function:

GetSpriteType()

const eSprite CObject::GetSpriteType

(

)

const

Reader function for sprite type.

Returns

Sprite type.

Here is the caller graph for this function:
