CGame Class Reference

The game class.

#include <Game.h>

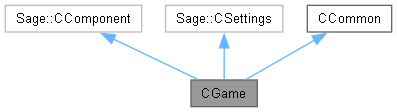

Inheritance diagram for CGame:

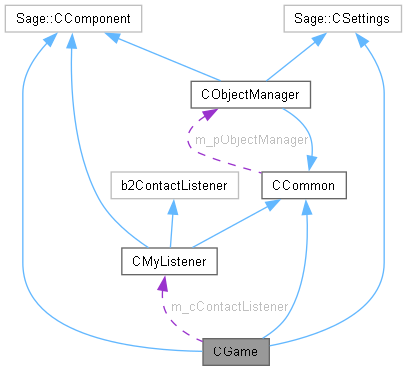

Collaboration diagram for CGame:

Public Member Functions
	~CGame ()
	Destructor.
void	Initialize ()
	Initialize the game.
void	ProcessFrame ()
	Process an animation frame.
void	Release ()
	Release the renderer.

Private Member Functions
void	LoadSprites ()
	Start loading sprites.
void	LoadSounds ()
	Start loading sounds.
void	BeginGame ()
	Begin playing the game.
void	KeyboardHandler ()
	The keyboard handler.
void	RenderFrame ()
	Render an animation frame.
void	ProcessState ()
	Process game state.

Private Attributes
eGameState	m_eGameState = eGameState::Loading
	Game state.
CMyListener	m_cContactListener
	Contact listener.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static CBox2DRenderer *	m_pRenderer = nullptr
	Pointer to the Renderer.
static Sage::CParticleEngine2D *	m_pParticleEngine = nullptr
	Pointer to particle engine.
static b2World *	m_pPhysicsWorld = nullptr
	Pointer to Box2D Physics World.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the Object Manager.
static eDrawMode	m_eDrawMode = eDrawMode::Sprites
	Draw mode.

Constructor & Destructor Documentation

~CGame()

CGame::~CGame

(

)

Call the Renderer's Release function to do the required Direct3D cleanup, then delete the Renderer and the Object Manager. Also delete Physics World, which MUST be deleted after the Object Manager because of way things are set up.

Member Function Documentation

BeginGame()

void CGame::BeginGame ( )

private

Clear any old objects out of the Object Manager and create the edges of the game world, which correspond to the edges of the window.

Here is the call graph for this function:

Here is the caller graph for this function:

Initialize()

void CGame::Initialize

(

)

Initialize the Renderer and the Object Manager, load images and sounds, start the timer, and begin the game.

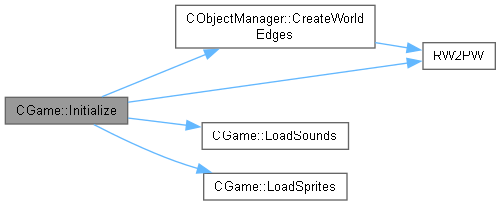

Here is the call graph for this function:

Here is the caller graph for this function:

KeyboardHandler()

void CGame::KeyboardHandler ( )

private

Poll the keyboard state and respond to the key presses that happened since the last frame.

Here is the caller graph for this function:

LoadSounds()

void CGame::LoadSounds ( )

private

Load the sounds for this game.

Here is the caller graph for this function:

LoadSprites()

void CGame::LoadSprites ( )

private

Load the sprites for this game.

Here is the caller graph for this function:

ProcessFrame()

void CGame::ProcessFrame

(

)

Handle keyboard input, move the game objects and render them in their new positions and orientations. Notify the timer of the start and end of the frame so that it can calculate frame time.

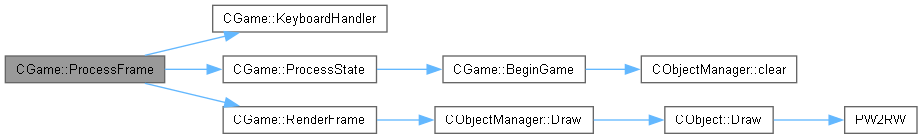

Here is the call graph for this function:

Here is the caller graph for this function:

ProcessState()

void CGame::ProcessState ( )

private

Take action appropriate to the current game state.

Here is the call graph for this function:

Here is the caller graph for this function:

Release()

void CGame::Release

(

)

Release all of the DirectX12 objects by deleting the renderer.

Here is the caller graph for this function:

RenderFrame()

void CGame::RenderFrame ( )

private

Ask the Object Manager to draw the game objects. RenderWorld is notified of the start and end of the frame so that it can let Direct3D do its pipelining jiggery-pokery.

Here is the call graph for this function:

Here is the caller graph for this function:
