CChain Class Reference

The chain. More...

#include <Chain.h>

Inheritance diagram for CChain:

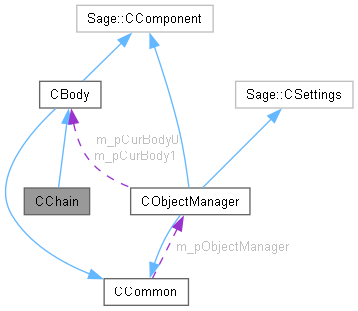

Collaboration diagram for CChain:

Public Member Functions
	CChain (UINT, float, float, float, Vector2)
	Constructor.
Public Member Functions inherited from CBody
virtual	~CBody ()
	Destructor.
void	DeliverImpulse (float)
	Deliver impulse to body.
void	Teleport (const Vector2 &)
	Magically teleport body by this amount.
void	Draw ()
	Draw body.

Additional Inherited Members
Protected Member Functions inherited from CBody
CPoint *	CreatePoint (eSprite, const Vector2 &)
	Create point.
CSpring *	CreateSpring (eSprite, CPoint *, CPoint *, float=1.0f)
	Create spring.
Protected Attributes inherited from CBody
std::vector< CPoint * >	m_stdPt
	Vector of pointers to points in this body.
std::vector< CSpring * >	m_stdSpr
	Vector of pointers to springs.
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static eBody	m_eCurrentBody = (eBody)0
	Current body type.

Detailed Description

A chain is a body consisting of a collection of points laid out in a line with a spring or stick from each one to the next.

Constructor & Destructor Documentation

CChain()

CChain::CChain	(	UINT	n,
		float	r,
		float	s,
		float	a,
		Vector2	v )

Make a chain of points in a straight line connected by springs.

Parameters

n	Number of points
r	Rest length of the springs.
s	Coefficient of restitution of the springs.
a	Orientation.
v	Location of chain center.

Here is the call graph for this function:
