CPoint Class Reference

The point. More...

#include <Point.h>

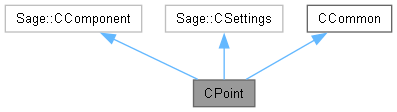

Inheritance diagram for CPoint:

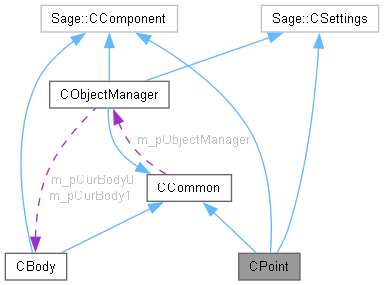

Collaboration diagram for CPoint:

Public Member Functions
	CPoint (eSprite, const Vector2 &, float)
	Constructor.
void	Move ()
	Change position depending on time and velocity.
void	Draw (float)
	Draw.
void	DeliverImpulse (float, float)
	Deliver an impulse.
void	Adjust (const Vector2 &)
	Adjust position from Gauss-Seidel relaxation.
void	Teleport (const Vector2 &)
	Magically teleport point by this amount.
void	SetCollisionSound (eSound)
	Override default collision sound.
const Vector2 &	GetPos () const
	Get position.
float	GetRadius () const
	Get radius.

Private Member Functions
float	EdgeCollision ()
	Collision detection and response for edges of screen.

Private Attributes
eSprite	m_eSpriteType = eSprite::None
	Sprite type.
Vector2	m_vPos
	Current position.
Vector2	m_vOldPos
	Previous position, needed for Verlet.
float	m_fRadius = 0.0f
	Radius of bounding circle.
float	m_fAngle = 0.0f
	Orientation angle.
float	m_fXScale = 1.0f
	Scale along x-axis.
float	m_fYScale = 1.0f
	Scale along y-axis.
eSound	m_eCollisionSnd = eSound::None
	Collision sound.

Additional Inherited Members
Static Protected Attributes inherited from CCommon
static Sage::CSpriteRenderer *	m_pRenderer = nullptr
	Pointer to the renderer.
static CObjectManager *	m_pObjectManager = nullptr
	Pointer to the object manager.
static eBody	m_eCurrentBody = (eBody)0
	Current body type.

Detailed Description

The point class is the representation of an abstract point moving through space using Verlet Integration.

Constructor & Destructor Documentation

CPoint()

CPoint::CPoint	(	eSprite	t,
		const Vector2 &	p,
		float	r )

Create a Verlet-style point.

Parameters

t	Sprite type.
p	Initial position.
r	Radius.

Member Function Documentation

Adjust()

void CPoint::Adjust

(

const Vector2 &

v

)

All a point needs to do ti adjust its position during Gauss-Seidel relaxation is to move when the spring tells it to.

Parameters

v	Translation vector.

Here is the caller graph for this function:

DeliverImpulse()

void CPoint::DeliverImpulse	(	float	a,
		float	m )

Since we are using Verlet integration, an impulse is easily faked by moving the old position a distance proportional to the magnitude of the impulse in the direction of motion.

Parameters

a	Angle.
m	Magnitude.

Here is the caller graph for this function:

Draw()

void CPoint::Draw

(

float

a

)

Draw a point. If it's a ball, draw it at orientation zero (the default orientation, meaning the sprite is drawn as given in the image file). Otherwise, orient it correctly.

Parameters

a	Orientation.

Here is the caller graph for this function:

EdgeCollision()

float CPoint::EdgeCollision ( )

private

Check for a collision and do the necessary calculations for reflecting a point if it hits an edge.

Returns

Collision speed, zero if no collision.

Here is the caller graph for this function:

GetPos()

const Vector2 & CPoint::GetPos

(

)

const

Reader function for position.

Returns

Position.

Here is the caller graph for this function:

GetRadius()

float CPoint::GetRadius

(

)

const

Reader function for radius.

Returns

Radius.

Move()

void CPoint::Move

(

)

Move the point using Verlet integration, perform collision detection and response with edges of window. Notice that there is no concept of time here.

Here is the call graph for this function:

SetCollisionSound()

void CPoint::SetCollisionSound

(

eSound

s

)

Set the sound to be used when this point collides with something.

Parameters

s	New collision sound.

Here is the caller graph for this function:

Teleport()

void CPoint::Teleport

(

const Vector2 &

d

)

Teleport the point without changing its velocity. Well, actually points don't have a velocity under Verlet Integration, but you know what I mean. Just displace both the position and old position.

Parameters

d	Displacement.
