ShapeMath.h File Reference

Handy math functions for the collision module.

#include <d3d11_2.h>
#include <dxgi1_3.h>
#include <DirectXMath.h>
#include "SimpleMath.h"

Include dependency graph for ShapeMath.h:

This graph shows which files directly or indirectly include this file:

Macros
#define	FailIf(x)

Functions
float	Shapes::NormalizeAngle (float)
	Normalize angle to \([0, 2\pi)\).
Vector2	Shapes::Normalize (Vector2)
	Normalize a vector, ie. make it unit length.
Vector2	Shapes::perp (const Vector2 &)
	Perpendicular vector.
Vector2	Shapes::AngleToVector (const float)
	Normal vector from orientation.
Vector2	Shapes::RotatePt (Vector2, const Vector2 &, const float)
	Rotate point.
Vector2	Shapes::ParallelComponent (const Vector2 &, const Vector2 &)
	Compute parallel component of vector.

Macro Definition Documentation

FailIf

#define FailIf

(

x

)

Value:

if(x)return false;

Fail by returning false if a given condition is true.

Parameters

x	Condition for failure.

Function Documentation

AngleToVector()

Vector2 Shapes::AngleToVector

(

const float

theta

)

Compute a unit vector at an angle measured in radians counterclockwise from the positive X-axis. If \(\vec{v} = [v_x, v_y]\) is a unit vector with tail at the Origin and \(\theta\) is the angle between \(\vec{v}\) and the positive X-axis, then \(\sin \theta = v_y\) and \(\cos \theta = v_x\). Hence, \(\vec{v} = [\cos \theta, \sin \theta]\), as shown below. Therefore, this function returns Vector2(cosf(theta), sinf(theta)).

Parameters

theta

Angle in radians.

Returns

Unit vector at angle theta counterclockwise from positive X.

Here is the call graph for this function:

Here is the caller graph for this function:

Normalize()

Vector2 Shapes::Normalize

(

Vector2

v

)

The DirectXTK doesn't have a function that returns a normalized vector, so here it is. We will now be able to use it in constant declarations, for example, const Vector2 u = v.Normalize().

Parameters

v

A vector.

Returns

A unit vector that points in the direction of v.

Here is the call graph for this function:

Here is the caller graph for this function:

NormalizeAngle()

float Shapes::NormalizeAngle

(

float

a

)

Normalize angle to \([0, 2\pi)\).

Parameters

a	Angle in radians.

Returns

Normalized angle, that is, in the range \([0, 2\pi)\).

Here is the call graph for this function:

Here is the caller graph for this function:

ParallelComponent()

Vector2 Shapes::ParallelComponent	(	const Vector2 &	v0,
		const Vector2 &	v1 )

Find the component of one vector parallel to another. The component of \(\vec{v}_0\) parallel to \(\vec{v}_1\) is \((\vec{v}_0 \cdot \hat{v}_1)\hat{v}_1\).

Parameters

v0	Vector whose component we want.
v1	Vector that the component must be parallel to.

Returns

Component of v0 that is parallel to v1.

Here is the call graph for this function:

Here is the caller graph for this function:

perp()

Vector2 Shapes::perp

(

const Vector2 &

v

)

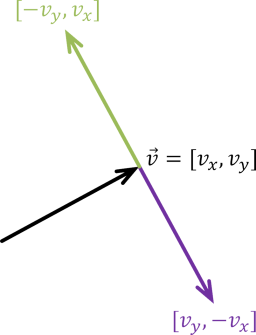

Compute the counterclockwise perpendicular of a vector, preserving length. If \(\vec{v} = [v_x, v_y]\), then both dot products \(\vec{v} \cdot [-v_y, v_x]\) and \(\vec{v} \cdot [v_y, -v_x]\) are equal to zero, and therefore both \([-v_y, v_x]\) and \([v_y, -v_x]\) are perpendicular to \(\vec{v}\). The former (drawn in green below) points counterclockwise from \(\vec{v}\) and the latter (drawn in purple below) points clockwise from \(\vec{v}\).

Parameters

v	A vector, not necessarily normalized.

Returns

The counterclockwise perpendicular to v of the same length.

Here is the call graph for this function:

Here is the caller graph for this function:

RotatePt()

Vector2 Shapes::RotatePt	(	Vector2	u,
		const Vector2 &	v,
		const float	a )

Rotate a point about an arbitrary center.

Parameters

u	Point to be rotated.
v	Center of rotation.
a	Angle of rotation in radians counterclockwise.

Returns

Rotated point.

Here is the call graph for this function:

Here is the caller graph for this function:
